Key Features Fast Test Utilizing double-channel test mode No Residue No residue of hematology diluent or lysing reagent；Cost effective Easy and Convenient Operation Large LCD touch screen High-definition color monitor, no need of external computer Built-in printer to fast print test results Supports Wi-Fi data transmission for printing A4 reports on Ani-Q Optimized Liquid System Very low failure rate & excellent maintainability Intelligent Floating Threshold Making the classification more accurate Techinical Specifications 19 Reportable Parameters: WBC, NEU#, MXD#, LYM#, NEU%, MXD%, LYM%, RBC, HGB, MCV, RDW-CV, MCHC, MCH, RDW-SD, HCT, PLT, MPV, PDW, PCT Principles: Classic Electrical Impedance Method, Mature Photoelectric Colorimetry Sample Mode: Whole Blood Sample Volume: Venous blood: 10 μL QC Methods: L-J QC, X-B QC Data Storage: 10000 Screen Type: 10.4 inch Resistive Screen Power Supply: 100-240 V~ 50/60 Hz Weight: 16 kg Dimension: 328 mm x 425 mm x 446 mm (L x W x H) Operating Conditions: 18~30℃, ≤80％ Relative Humidity, 75 kPa~106 kPa

Key Features User-friendly Interface  5.6 inch touch screen PC, LIS, HlS connectivity Simplified operation ltem auto-recognition Optional barcode scanner Reliable and advanced system  Up to 10000 data storage Multiple quality control 5 seconds/test for multiple samples  Application Scenarios ICU Emergency Room Clinic Test Menu Technical Specifications Methodology: Colloidal gold Result: Quantitative Dimensions: 250 mm (W) *250 mm (D) *120 mm (H)  Weight: 1.8 kg  Storage Capacity: 10000 data Sample Type: Serum, plasma, whole blood, urine, stool Language: English/Chinese/Spanish Screen: 5.6 inch touch screen Power Supply: 100-240V~50Hz/60Hz, 60VA Tempreture: -15~+40℃   Relative Humidity: ≤93%  Air Pressure: 50.0~106.0kpa

Key Features Instant Testing  2-15 minutes/test 5 seconds/test for simple samples Optimized Operation One-step test Auto-recognition of test items Optional barcode scanner Use-friendly Design 7 inch touch screen Communication port USB / LAN Optional lithium battery Application Scenarios ICU Emergency Room Clinic Test Menu Technical Specifications Methodology: Colloidal gold Dimensions: 220 mm (D) *230 mm (W) *98 mm (H) Weight: 1.5 kg Sample Type: Serum, plasma, whole blood, urine, stool Storage Capacity: 10000 data Language: English/Chinese/Spanish Screen: 7 inch touch screen Printer: Internal thermal printer Certificate: CE, ISO

Key Features Principles Laser scatter in flow cytometry Classic electrical impedance method Mature photoelectric colorimetry Fast Test Use double-channel test mode with 60 T/H More Accurate Test Use optical method to detect Basophil Curve fitting, floating threshold technology lntelligent scatter classification technology The smallest gem hole in the industry with high sensitivity Digital filtering, coincidence correction in blood cell counting Optical Method for BASO: Avoid errors caused by the partial Technical Specifications 23 Reportable Parameters：RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, WBC, NEU (#), LYM (#), MON (#), EOS (#), BAS (#), NEU (%), LYM (%), MON (%), EOS (%), BAS (%), PLT, MPV, PDW, PCT Analysis Speed: 60 T/H Screen Size: 10.1-inch touch screen Whole Blood Sample Volume: 30 μL Supported Languages: Chinese, English, Russian, Spanish Printer: Built-in thermal printer, supports WiFi data transmission   Supported Species: Cat, dog, and one user-defined animal species Detection Principles: Laser flow cytometry, photoelectric colorimetry 50 μm Gem Aperture: Ensures precise Red Blood Cell (RBC) detection

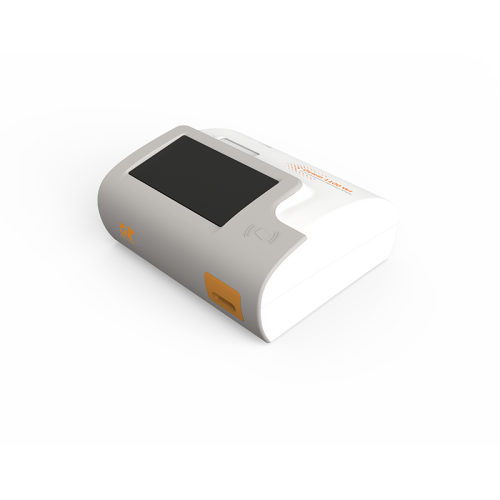

Key Features Reliable and accurate results Advanced immunofluorescence quantitative technology Provide high-quality testing multi-scene application Small in size, lithium-ion battery (optional) Support WIFi, convenient data transmission, free of network cables Apply to multiple scenarios instant testing Get results in 3-10 min One sample can be tested in 5 sec at the fastest with multiple test items Smooth Operation Large display, android system, user-friendly interface Real-time auto-printing and uploading   Application Scenarios Vet Clinics Animal Farm Large Pet Hospital Technical Specifications Test Principle: Immunofluorescence Sample Type: Serum, Plasma, Whole Blood, Stool, Eye Secretion, Nose Secretion Reaction Time: 3-10 min Sample Volume: 10-15 μL Dimensions: 261 mm (W) x 241 mm (D) x 115 mm (H)  Weight: 2 kg Printer: Internal Printer Storage Capacity: 10,000 data Language: English/Chinese

Key Features Compact but Mighty Samples in, results out Only 35 min to get results High Throughput Dual-module design and 4 channels for simultaneous testing of multiple items Room Temperature Transportation and Storage Low cost and easy storage Advanced Technology Microfluidic reagent kit can realize fast heating and cooling Application Scenarios Vet Clinics Animal Farm Large Pet Hospital Test Menu Techinical Specifications Test Principle:  Fluorescence quantitative PCR combined with microfluidics  Sample Type: Serum, Plasma, Whole Blood, Stool, Eye Secretion, Nose Secretion, Hydrothorax and Abdomen  Module Number: 2 independent modules Throughput: 4 channels Reaction Time: 35 min Sample Volume: 60 μL (Refer to IFU) Dimensions: 310 mm (W) x 419 mm (D) x 233 mm (H)  Weight: 9.5 kg Printer: Internal Printer Storage Capacity: 10,000 data Language: English/Chinese Module Number: 2 independent modules Throughput: 4 channels
