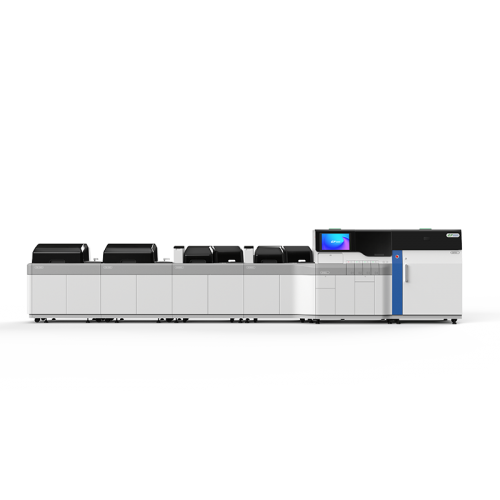

Key Features Automatic Utilizes an automated and streamlined workflow design to significantly reduce manual operational load Independent emergency track, striving for more treatment time Flexible Flexible expansion enables the combination and collaboration of 1-4 modules Optional choice for CS 700 system (Storage, retrieval and disposal) Compact Metis 7000 takes up only 2.5㎡ for two modules (without centrifuge or refrigeration) Only increasing 1.0 ㎡ for adding 1 more analytical module Intelligent Optional CS 700 refrigeration unit can realize: Automated temperature-controlled cold storage for test tubes, quality controls, and calibrators Positioning recognition and automated transfer of sample trays Automatic disposal of expired or waste samples Application Scenarios Hospital Labs Diagnostic Centers Check-up Centers Test Menu Techinical Specifications MAGICL 8500 Immunochemistry Module Test Principle: Acridinium ester direct chemiluminescence Throughput: Up to 600 T/H Fastest Time of First Result: 12 min Using RFID to dynamically update reagent status Tilt-pour test cup loading, maximum capacity of 2000 units Dimensions:1100 mm(L)×873 mm(W)×1232 mm(H) CM-1600 Clinical Chemistry Module Throughput: Constant speed of 1600 T/H; optional ISE module: 600 T/H Testing up to 66 items at the same time (ISE included) Reagent Positions: 107 Sample needle ultrasonic washing Acid solution, alkaline solution, 8-step warm water washing Dimensions:1100 mm(L)×873 mm(W)×1220 mm(H)

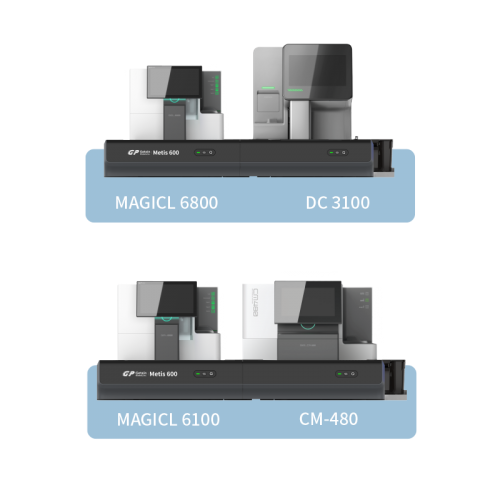

Key Features Maximizing the potential of the laboratory Metis 600 modular system provides suitable solutions for immunofluorescence and hematology testing in low volume laboratories Standardization Improve laboratory efficiency through the highest level of automation Reliability Maximize reliable results with industry-leading instrument accuracy and service Rapid Accelerate turnaround time for high-volume sample testing and achieve new levels of rapid service Capacity The combination of Immunofluorescence and Hematology methodologies allows for a more comprehensive test items to be offered Application Scenarios Hospital Labs Diagnostic Centers Check-up Centers Test Menu Technical Specifications BHA-5100 Automatic Hematology Analyzer Dimensions: 67 cm x 70.5 cm x 57 cm Weight: 21 kg Methodology: Flow cytometry, impedance method, colorimetry Throughput: 60 T/H Test items: 25 reportable parameters Quality control method: L-J quality control, X-B quality control Storage capacity: > 100, 000 patient data Gem Hole: 50 μm Sample Volume: 15 μL Reagents: 1 diluent and 2 lysers Getein 1200 Immunofluorescence Quantitative Analyzer Dimensions: 67.5 cm × 57 cm × 57.4 cm Weight: 43 kg Methodology: Quantitative immunofluorescence Sample Positions: 50, continuous sample loading Reagent Positions: 4 x 24/48 Throughput: 120 T/H Test items: 42 items in 11 fields Storage capacity: 100, 000 test results Storage capacity: 100, 000 test results Dry System: ADP aspiration, no liquid path Automation: Automatic sample loading, mixing and decapping
Key Features Automatic Automatic & Streamlined workflow to reduce workload Independent emergency track, striving for more treatment time Flexible Flexible expansion enables the combination and collaboration of 1-4 modules Optional choice for SHC 200 system (Centrifuge & Decapper) Compact Metis 6000 takes up only 2.6 m2 for two modules Only increasing 1.0 m2 by upgrading with SHC 200 system (Centrifuge & Decapper) Intelligent Optional SHC 200 pre-analytical module can realize Automatic tube decapping and cap disposal Automatic sample centrifugation Centrifugation time, speed and temperature can be set according to needs Application Scenarios Hospital Labs Diagnostic Centers Check-up Centers Test Menu Technical Specifications MAGICL 6200 Immunochemistry Module Test Principle: Acridinium ester direct chemiluminescence Throughput: Up to 400 T/H Fastest Time of First Result: 10 min Reaction Cup: Using mainstream circular reaction cup, up to 2000 pieces can be stored at a time Reagent Tray: 30 reagent positions with 2-8 ℃ internal air circulation refrigeration Dimensions:1100 mm(L)×930 mm(W)×1200 mm(H) CM-1000 Clinical Chemistry Module Throughput: Constant speed of 1000 T/H; optional ISE module: 400 T/H Simultaneously detected items: 61 Cuvettes: 270 quartz glass or plastic cuvettes (optical path: 5 mm) Reagent Tray: 63 reagent positions for outer tray (20/70 mL) 40 reagent positions for inner tray (20/70 mL) Dimensions: 1100 mm(L)×930 mm(W)×1200 mm(H)
