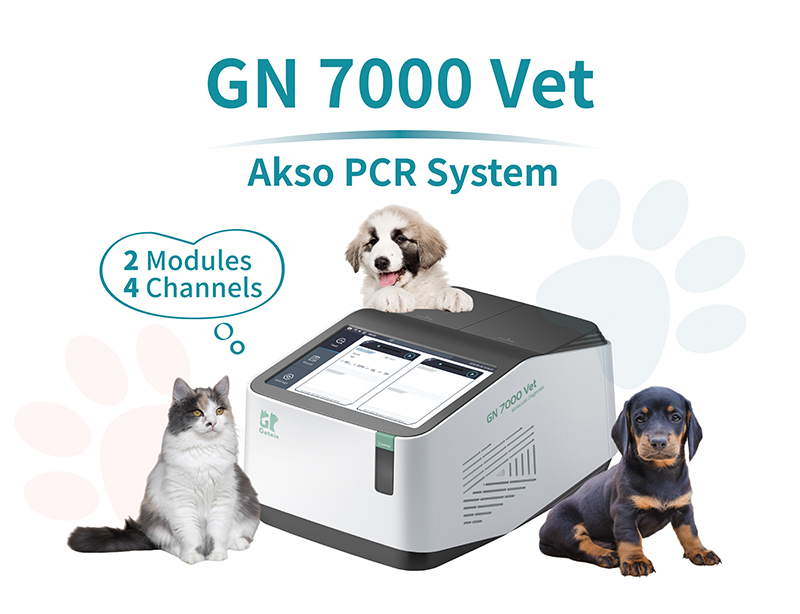

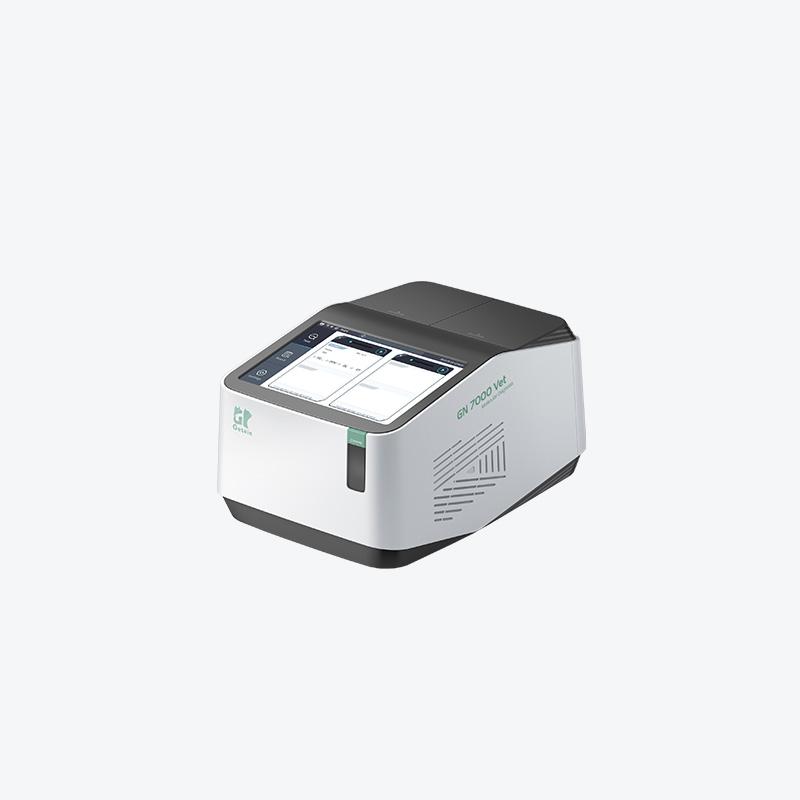

GN 7000 Vet PCR System
GN 7000 Vet is a rapid PCR analyzer together with the core technology of microfluidic chip. It features four independent detection modules to meet diverse bedside POCT needs with the fastest detection time of only 35 minutes.
GN 7000 Vet is a rapid PCR analyzer together with the core technology of microfluidic chip. It features four independent detection modules to meet diverse bedside POCT needs with the fastest detection time of only 35 minutes.
Fully automated nucleic acid extraction → PCR amplification → detection → analysis
Paired with exclusive patent⸺fully enclosed microfluidic reagent chip, avoids operational and
instrumental contaminationMultiple tests at once, maximizing workflow and save time
Require minimal training and hands-on time
Fastest turnaround time of 35 min from sample to result
Principle: Real-time Quantitative PCR
Weight: 9.5 kg
Module Number: 2
Detection Channels: 4
Sample Repeatability: CV≤3%
Thermal Cycling Tech: Peltier
Light Source: LED
Sample Linearity: ≥0.98
Reagent Parameter Import: QR Code Scan Recognition
Temperature Uniformity: ±1℃
Sample Volume: 60 μL EDTA Whole Blood (Other types ref. manual)
Dimensions: 419(L) x 310(W) x 233(H) mm
Power Parameters: AC 220V±22V, 50Hz±1Hz
Display: 10.1-inch Touch Screen
Supported Languages: Chinese, English, Spanish
Ramp Rate: Max Heating ≥8℃/s, Max Cooling ≥7℃/s
