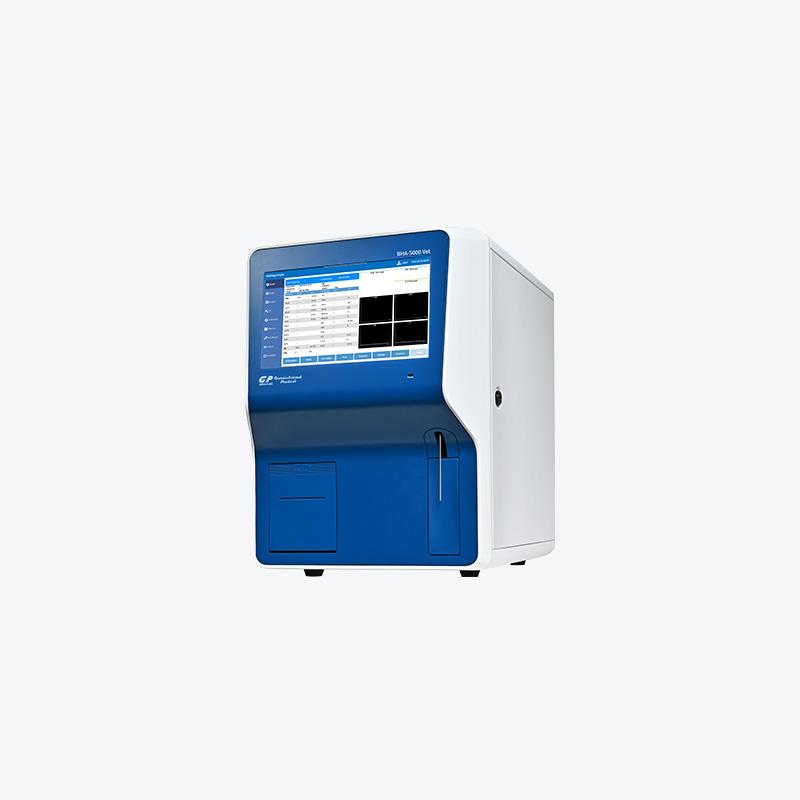

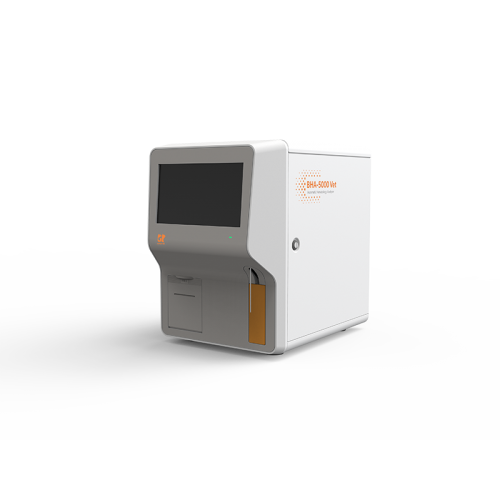

BHA-5000 Vet Automatic Hematology Analyzer

Let Healthcare Benefit Animals

The BHA-5000 Vet is a state-of-the-art hematology analyzer designed specifically for veterinary use. It provides precise and reliable blood analysis for a wide range of animal species. This advanced device features a user-friendly interface, rapid testing capabilities, and comprehensive data management, making it an essential tool for veterinary clinics and laboratories. With its high accuracy and efficiency, the BHA-5000 Vet ensures optimal diagnostic support, enhancing the quality of care for animal patients.

Key Features

Humanization

Venous blood sample volume: 15 uL

Less pain during blood collection

Sample type: venous blood/capillary blood

(pre-dilution mode) to meet different needs
Technology Innovation

Intelligent scatter classification technology

Curve-fitting&floating threshold technique
Advanced methods

Laser Scattering Method: Obtain information on the size and internal composition of WBC and classify them

Digital Filtering: Effectively remove interference from impurity signals

Optical Method for BASO: Avoid errors caused by the partial overlap of basophil and leukocyte
High Efficiency and No Residue

60 T/H

No hematology diluent or lysis reagent residues

Blood Cell Overlap Correction Technology

Make accurate judgments when cells overlap through the well
Multi-Segment counting

Better exclude biased results and improve test accuracy

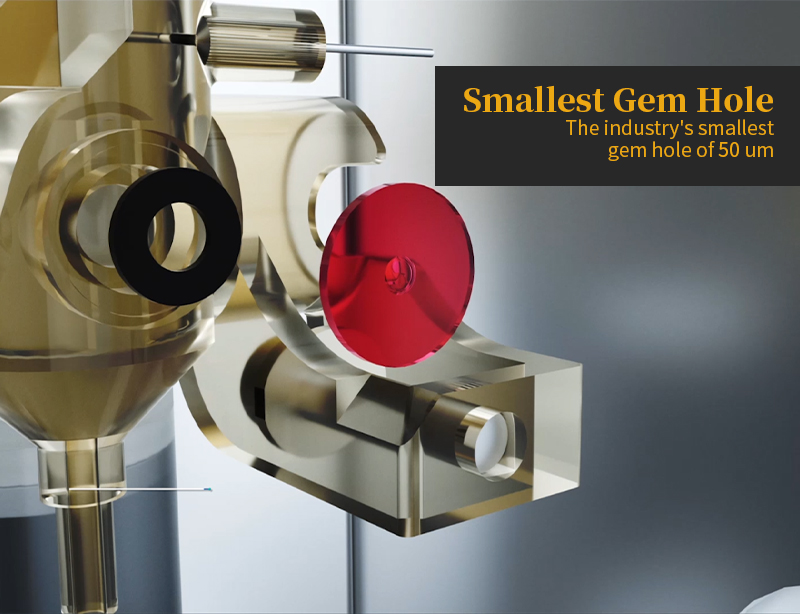

Smallest Gem Hole

The industry's smallest gem hole of 50 um
Display

10.4" capacitive touch screen, improve the sensitivity of touch operation

Support operation with rubber gloves

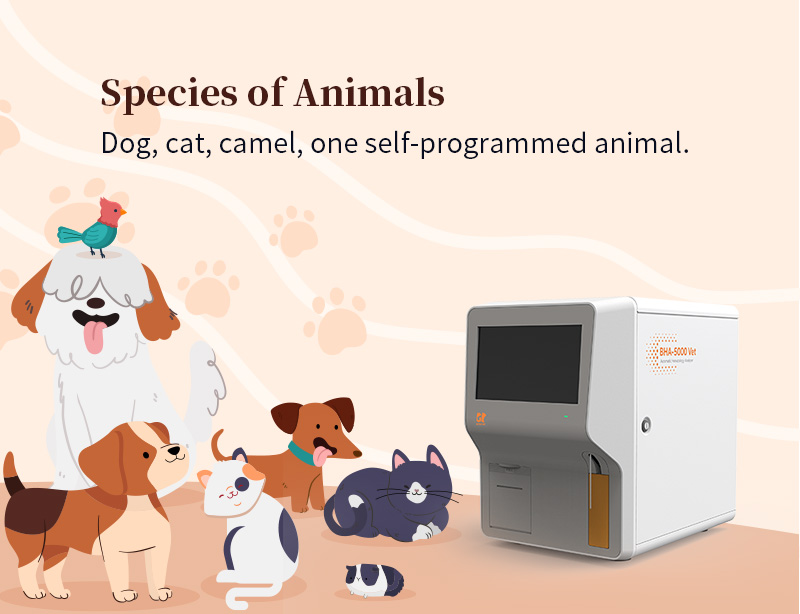

Species of Animals

Dog, cat, pig, horse, sheep, rabbit, camel, one self-programmed animal

Technical Specifications

23 Whole Blood Reportable：WBC、LYM%、LYM#、NEU%、NEU#、MON%、MON#、EOS%、EOS#、BAS%、BAS#、RBC、HGB、HCT、MCV、MCH、MCHC、RDW-SD、RDW-CV、PLT、PDW、MPV、PCT
Sample Volume: Venous blood: 15 μL; capillary blood (pre-dilution): 20 μL
Principles： Laser Scatter in Flow Cytometry，Classic Electrical Impedance Method，Mature Photoelectric Colorimetry
Power Supply：220V±22～AC,50±1 Hz，Larger voltage range can be supported by transformers
Sample Volume：Whole blood: 15μL； Diluted blood: 20μL
Dimensions：328 mm (L) x 471 mm (W) x 446 mm (H)
Performance：Parameter Precision (CV%)，WBC ≤4.0，RBC ≤2.0，HGB ≤2.0，PLT (10^3/μL) ≤8.0，MCV ≤3
Display：10.4 Inch capacitive touch screen
Quality Control：L-J QC, X-B QC
Weight：21 kg
