Key Features Sample In - Result Out Compact design &All-in-One system Fully automated nucleic acid extraction→PCR amplification→detection→analysis Quick Test Fastest turnaround time of 35 min from sample to result High Throughput Dual-module design, 4 test channels Multiple items could be detected simultaneously Room Temperature Transportation & Storage Advanced technology, freeze-dried reagent Convenient and cost- effective transportation Applicable Scenarios Medical Laboratories Clinics Health Check-up Center Test Menu Technical Specifications Test Principle: Real-time PCR Time for the Result: 35 min Channels: 4 Module Number: 2 Sample Type: Nasopharyngeal swab, conjunctiva swab, anal swab, feces, whole blood, serum, oral and nasal secretion, genital tract swab, urinary tract swab, lesion exudate, cervical swab, sputum Thermal Cycling Technology: Peltier Dimensions: 419mm(L)*310 mm(W)*233 mm(H) Weight: 9.5 kg
Benefits where you need Instant Results Get results in 3-15 minutes Detection Performance Improved Reduced influence by temperature and improved detection accuracy Dry clinical chemistry and immunofluorescence Supporting multiple test items Combo test, highly efficient Reliable Accuracy Good correlation with CLIA method 32℃ constant test environment Convenient Easy to operate, user friendly interface Benefits where you need ICU Laboratory Emergency Clinic Test Menu Technical Specifications Dimensions: 160 mm × 80 mm × 24 mm (D×W×H) Weight: 256 g Printer: Support for external Bluetooth thermal printer Connectivity: USB/Bluetooth/WIFI Calibration: SD Card Calibration Sample Type: serum, plasma, whole blood, capillary blood, urine, swab, saliva, stool Sample Volume: 10 ~ 200 μL depending on the assay Language: English/Chinese Cases Storage: Over 10,000 test cases Repeatability: CV ≤ 2% within range [100, 15000] mV; CV ≤ 10% within range [0, 100) mV
Key Features Highly Efficient & Accurate Advanced fluorescence immunoassay Multiple quality control Convenient Operation SD card calibration Continuous test for 3 hours with lithium battery Real-time and Rapid Test 3-15 min/test 5 sec/test for multiple tests User-friendly Interface Android system 7-inch touch screen Application Scenarios ICU Laboratory Emergency Clinic Test Menu Technical Specifications Methodology: Fluorescence Immunochromatography Channels: Single channel Sample Types: Serum, plasma, whole blood, urine, feces, fingertip blood, nasal swab, saliva Detection Time: 3-15 minutes Printer: Built-in thermal printer, paper size 5735 mm Display: 7.0-inch LCD color capacitive touchscreen, resolution 1024600, supports touch and handwriting operations Dimensions: 261 mm (L) × 241 mm (W) × 115 mm (H) Net Weight: Main unit 2000g, power adapter 430g, lithium battery pack (optional) 300g Operating System: Android system Data Storage: Stores 10,000 results (reagent storage capacity of 100,000, but excessive storagemay cause the Android system to crash; timely data cleanup is recommended) Communication Input: One SD card (old) slot, two USB ports Communication Output: One RS232 serial port, one Ethernet port Languages: English, Chinese, Spanish, Portuguese Repeatability: CV ≤ 2% within range [100, 15000] mV; CV ≤ 10% within range [0, 100) mV
Key Features Multiple channels High throughput, 8 channels available (7 test channels + 1 emergency test channel) Multiple test items can be tested at the same time, saving operation time Constant Temperature Providing steady test environment with more accurate test results Easy Operation Android system, touch screen lmmediate edit of sample and patients' info. Convenient for viewing test results SD card calibration, touch for recognition WIFI connection, easy for data transmission None Contamination Waste container is set in the equipment, avoiding medical contamination Application Scenarios ICU Laboratory Emergency Clinic Test Menu Technical Specifications Dimensions: 409 mm × 344 mm × 193 mm (W × D × H) Weight: 9 kg Printer: Real-time auto-printing, support for external printer Display: 10.1'' LCD touch screen Connectivity: Ethernet port for LIS/HIS COM port for PC ;2 USB ports for software update and file copy Calibration: RFID Card Calibration Sample Type: serum, plasma, whole blood, capillary blood, urine, swab, saliva, stool Sample Volume: 10 ~ 200 μL depending on the assay Language: English/Spanish/Chinese Cases Storage: Over 100,000 test cases Repeatability: CV ≤ 2% within range [100, 15000] mV; CV ≤ 10% within range [0, 100) mV
Key Features Portable Dimensions: 299 mm (W) × 276 mm (D)× 152 mm (H) Weight: 4 kg Instant Results Get results in 3-15 minutes Detection Performance Improved Reduced influence by temperature and improved detection accuracy Reliable Accuracy Good correlation with CLIA methodConvenientEasy to operate, user friendly interfaceAuto Cartridge Collection Automatically receive the used test cards when the test is finishedTechnical Specifications Application Scenarios ICU Laboratory Emergency Clinic Test Menu Technical Specifications Dimensions: 299 mm (W) × 276 mm (D)× 152 mm (H) Weight: 4 kg Printer: Built-in Thermal Printer, support for external printer Display: 10.1'' LCD touch screen Connectivity: Ethernet port for LIS/HIS COM port for PC ;2 USB ports for software update and file copy Sample Type: serum, plasma, whole blood, capillary blood, urine, swab, saliva, stool Sample Volume: 10 ~ 200 μL depending on the assay Language: English/Spanish/Chinese/French Repeatability: CV ≤ 2% within range [100, 15000] mV ; CV ≤ 10% within range [0, 100) mV
Key Features High-effciency Sample Processing Constant throughput: 400 T/H, optional ISE module with 400 T/H 90 samples positions, 80 reagent positions Dry Heating Thermostatic System Direct heating system enables faster heating and decreases pre-heating time Thermostatic system by dry heating keeps reaction solution in cuvettes at (37.0±0.2）℃ Accurate Sampling System Internally and externally polished sampling probes, high-precision Liquid volume tracking and level detection Intelligent Online Loading System Reagents can be loaded on-board during test Peltier system provides a longer maintenance period to reduce repair probability 8-step Warm Liquid Washing Whole probe stereo cleaning technology with cross-contamination rate＜0.05% Anti-overflow function prevents liquid spillage Application Scenarios Hospital Labs Diagnostic Centers Academic Research Institutes Test Menu Technical Specifications Test principles: Latex immunoturbidimetry, immunoturbidimetry, colorimetry Test Methods: Rate method, end point method, fixed-time method Dimensions: 1160 mm (L) * 790 mm (W) * 1140 mm (H) Gross Weight: 300 kg Sample Positions: 90 positions Reagent Positions: 80 positions Sample Types: Serum, plasma, whole blood, urine, and cerebrospinal liquid samples Application Scenarios: Hospital Labs, Diagnostic Centers, Academic Research Institutes Water Consumption: No more than 20 L purified water per hour Calibration: multi-point calibration curve with up to 7 points Dilution: automatic pre-dilution Minimum reaction volume: 100μL Minimum sampling volume: 1.5μL
Key Features Compact Design Bench top design Relatively lighter weight: 80 kg High Efficiency Throughput: up to 200 T/HFastest time for the first result: 12 min Dual-Tray Consumable Design 2 independent consumable trays, support replacement without pause 140 reaction cups per tray Smooth Reagent Management 24 reagent positions, support online loading PE film puncture technology, preventing reagents from evaporationEquipped with RFID, automatic identification of reagent information Application Scenarios Medical Laboratories Clinics Health Check-up Center Test Menu Technical Specifications Test Principle: Acridinium ester direct chemiluminescence Throughput: Up to 200 T/H Fastest Time for the First Result: 12 min Reagent Positions: 24 Sample Positions: 50 Sample Type: Serum, plasma, urine, fingertip blood Application Scenarios: Laboratory, Clinics, Emergency, ICU, Wards Sampling Method: Steel needle STAT: Support STAT mode Sensing Functions: Liquid level detection, residual monitoring of reagent and sample, anti-collision Reaction Cups: 2 individuals consumble trays with 140 reaction cups each Reaction Temperature: 37℃±0.5℃ Magnetic Seperation & Washing: 3-step magnetic separation and 3-step washing Dimensions: 685 mm(L)*690 mm(W)*660 mm(H) Weight: 80 kg

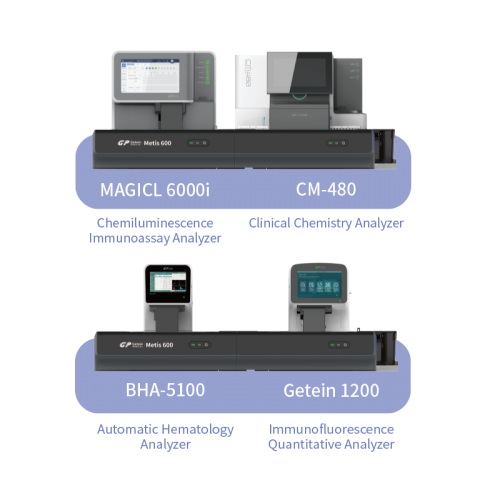

Key Features Fast and accurate tests with small footprint High throughput at 400 T/H can satisfy needs from different hospitals and laboratories Compact footprint, maximizing space utilization efficiency Flexible expansion for modular system Support expansion of centrifuge and decapper module / analysis modules Flexible combination of 4 analysis modules at most, fulfilling requirements from multiple laboratories High automation level Automatic sample loading and scanning, automatic weight balanced in centrifuge module without manual operation Intelligent software system Support auto-dilution and auto-retests Monitor real-time instrument status, testing status, reagent reserve and consumables status Application Scenarios Medical Laboratories Indipendent Clinical Laboratory Health Check-up Center Test Menu Technical Specifications Methodology: Acridinium ester direct chemiluminescence Analysis methods: Sandwich method, competition method Test Items: 118 items. Up to 85 items tested simultaneously Test Speed: Up to 400 T/H Fastest Time for the First Result：12 min Sample Volume: 10 uL~150 uL (1 uL increment) Sample Loading：Sample loading by tracks, sample/return/emergency track Maximum loading capacity: 190 sample positions Reagent Volume: 10 uL~150 uL (0.1 uL increment) Reagent Tray: 30 reagent positions Cooling function: internal air circulation cooling with a range of 4~8℃ Cuvettes：Using mainstream circular cuvettes, up to 2000 can be stored in hopper at a time Incubation Temperature: 37±0.2°C Preheating Time：<15 min Magnetic Separator Cleaning: Four-step magnetic separation, four-step cleaning Dimensions: 1100 mm (L) x 930 mm (W) x 1200 mm (H)
Key Features Reliable and accurate results Advanced immunofluorescence quantitative technology Provide high-quality testing multi-scene application Small in size, lithium-ion battery (optional) Support WIFi, convenient data transmission, free of network cables Apply to multiple scenarios instant testing Get results in 3-10 min One sample can be tested in 5 sec at the fastest with multiple test items Smooth Operation Large display, android system, user-friendly interface Real-time auto-printing and uploading Application Scenarios Vet Clinics Animal Farm Large Pet Hospital Technical Specifications Test Principle: Immunofluorescence Sample Type: Serum, Plasma, Whole Blood, Stool, Eye Secretion, Nose Secretion Reaction Time: 3-10 min Sample Volume: 10-15 μL Dimensions: 261 mm (W) x 241 mm (D) x 115 mm (H) Weight: 2 kg Printer: Internal Printer Storage Capacity: 10,000 data Language: English/Chinese
