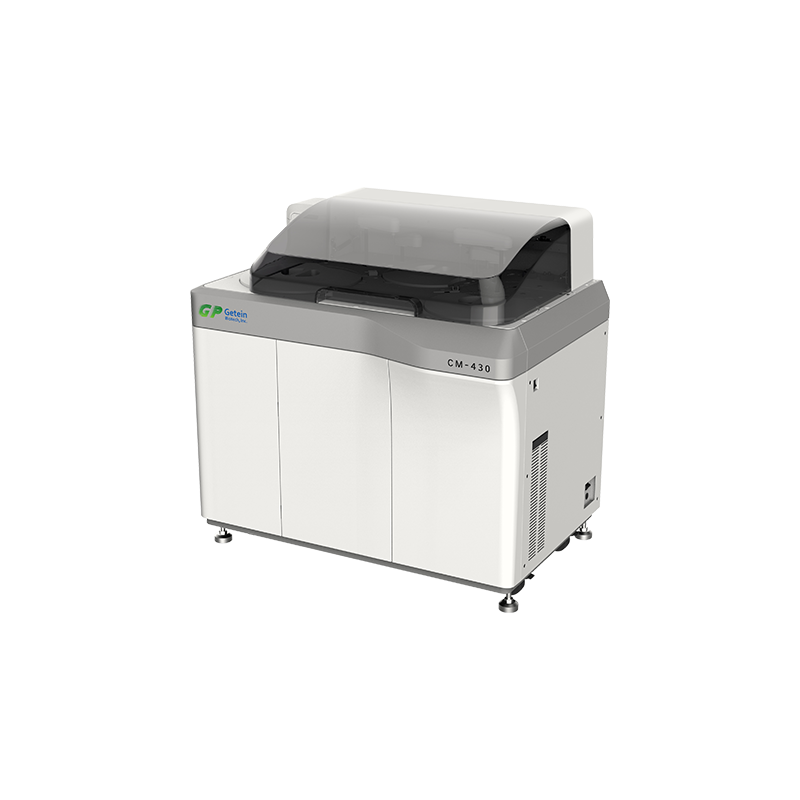

CM-430 is a comprehensive clinical chemistry analyzer with a throughput of 400 T/H. Equipped with a dry heating thermostatic system, accurate sampling technology and an intelligent online loading system, it delivers faster testing speed, more precise results. With one stirrer less in its optimized design, CM-430 offers lower cost while maintaining the same high performance.
One stirrer less — Upgraded mechanics with reduced maintenance
Constant throughput: 400 T/H, optional ISE module with 400 T/H
90 sample positions, 80 reagent positions
Direct heating system enables faster heating and decreases pre-heating time
Thermostatic system by dry heating keeps reaction solution in cuvettes at (37.0±0.2）℃
Internally and externally polished sampling probes, high-precision
Liquid volume tracking and level detection
Bubble detection and probe-clot (clogging) detection
Water-quality monitoring module (Optional) and Built-in degassing unit
Optical system with diffraction grating and 16 wavelengths

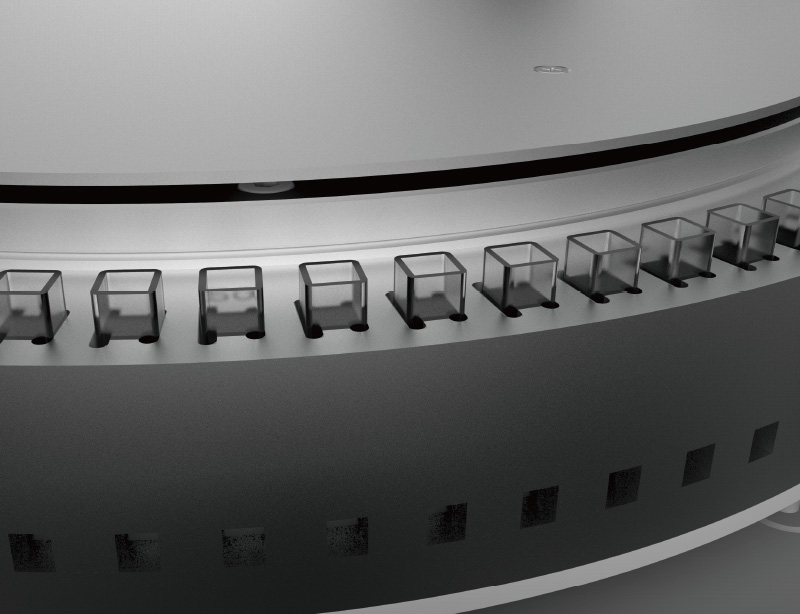

Glass reaction cuvettes with permanent use
Reagents can be loaded on-board during test
Peltier system provides a longer maintenance period to reduce repair probability
Whole probe stereo cleaning technology with cross-contamination rate＜0.01%
Anti-overflow function prevents liquid spillage
Test principles: Latex immunoturbidimetry, immunoturbidimetry, colorimetry
Test Methods: Rate method, end point method, fixed-time method
Dimensions: 1160 mm (L) * 790 mm (W) * 1140 mm (H)
Gross Weight: 300 kg
Sample Positions: 90 positions
Reagent Positions: 80 positions
Sample Types: Serum, plasma, whole blood, urine, and cerebrospinal liquid samples
Application Scenarios: Hospital Labs, Diagnostic Centers, Academic Research Institutes
Water Consumption: No more than 15 L purified water per hour
Calibration: multi-point calibration curve with up to 7 points
Dilution: automatic pre-dilution
Minimum reaction volume: 100μL
Minimum sampling volume: 1.5μL
