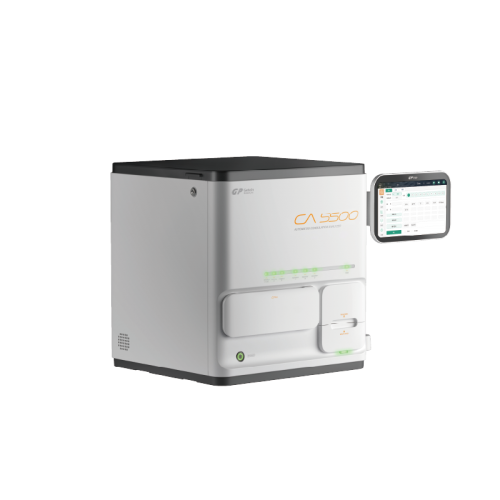

Key Features HIL interference warning The fully automated HIL sample solution provides superior resistance to sample interference Temperature Control Sample incubation module and reagent refrigeration system, ensuring exceptional accuracy of results STAT The STAT function prioritizes emergency samples, ensuring they are processed immediately Tilted Aspirating Design Reduce dead space volume of reagent Application Scenarios Medical Laboratories Clinics Health Check-up Center Test Menu Techinical Specifications Methodology: Clot, chromogenic and immunoturbidimetric principles Throughput: 200 T/H Sample Positions: 20 Reagent Positions: 20 Storage Capacity: 100,000 reaction curves Operation: 10.1 inches high-definition touch screen Dimensions: 518 mm x 495 mm x 545 mm (L x W x H) Weight: 40 kg Reagent Cabin: 14.0 ℃ ± 1.0 ℃ Incubation Area: 37.0 ℃ ± 1.0 ℃ Reagent Probe: 37.0 ℃ ± 1.0 ℃ Testing Area: 37.0 ℃ ± 1.0 ℃
Key Features Constant Temperature 37℃ constant incubation environment, allowing for more accurate test results Ultra-long Working Time Continuous operation for approximately 8+ hours Portable Design Dimensions: 185 mm (L) × 80 mm (W) × 54 mm (H) Weight: 400 g Convenient Operation Easy operation provides quick hands-on time Reliable Accuracy Good correlation with CLIA method, reduced influence by temperature and improved detection accuracy Application Scenarios ICU Laboratory Emergency Clinic Test Menu Techinical Specifications Sample Type: serum, plasma, whole blood, capillary blood, urine Sample Volume: 10-200 μL depending on the assay Dimensions: 185 mm (L) × 80 mm (W) × 54 mm (H) Weight: 400 g Display: 5”LCD touch screen, 720*1280 resolution Operating System: Android system Repeatability: CV≤ 2% within range [100, 15000] mV, CV≤ 10% within range [0,100) mV Temperature: 10℃-35℃ Relative Humidity: ≤ 70% Air Pressure: 70.0 kPa- 106.0 kPa Connectivity: Equipped with USB Type-C port;Support WiFi wireless network communication;Support 4G network communication Power Supply: Rechargeable lithium-ion battery 3700 mAh Language: English/Spanish/Chinese/Customized
Key Features Portable Dimensions: 299 mm (W) × 276 mm (D)× 152 mm (H) Weight: 4 kg Instant Results Get results in 3-15 minutes Detection Performance Improved Reduced influence by temperature and improved detection accuracy Reliable Accuracy Good correlation with CLIA methodConvenientEasy to operate, user friendly interfaceAuto Cartridge Collection Automatically receive the used test cards when the test is finishedTechnical Specifications Application Scenarios ICU Laboratory Emergency Clinic Test Menu Technical Specifications Dimensions: 299 mm (W) × 276 mm (D)× 152 mm (H) Weight: 4 kg Printer: Built-in Thermal Printer, support for external printer Display: 10.1'' LCD touch screen Connectivity: Ethernet port for LIS/HIS COM port for PC ;2 USB ports for software update and file copy Sample Type: serum, plasma, whole blood, capillary blood, urine, swab, saliva, stool Sample Volume: 10 ~ 200 μL depending on the assay Language: English/Spanish/Chinese/French Repeatability: CV ≤ 2% within range [100, 15000] mV ; CV ≤ 10% within range [0, 100) mV
