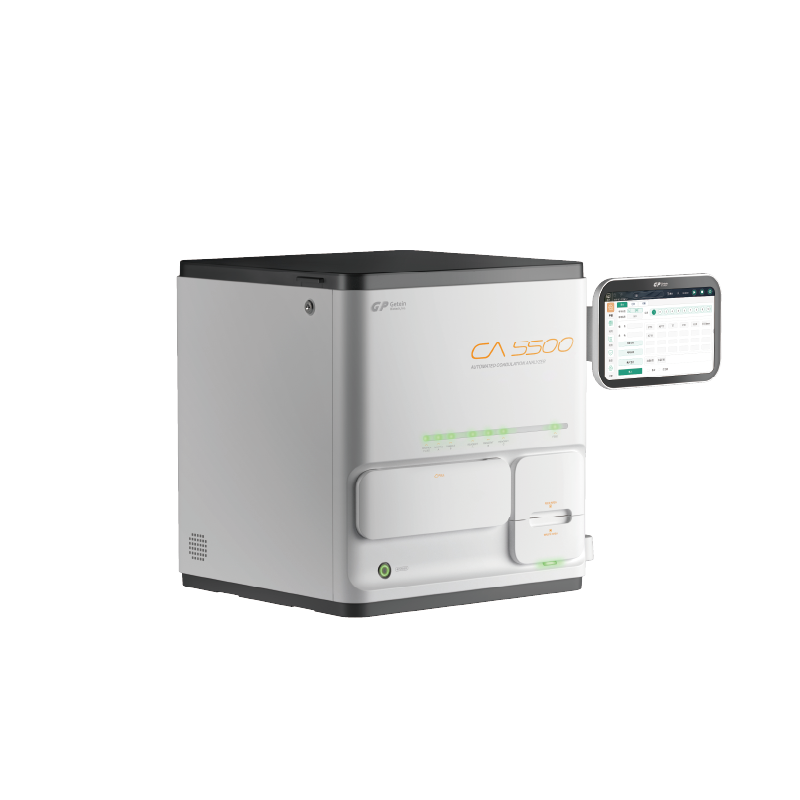

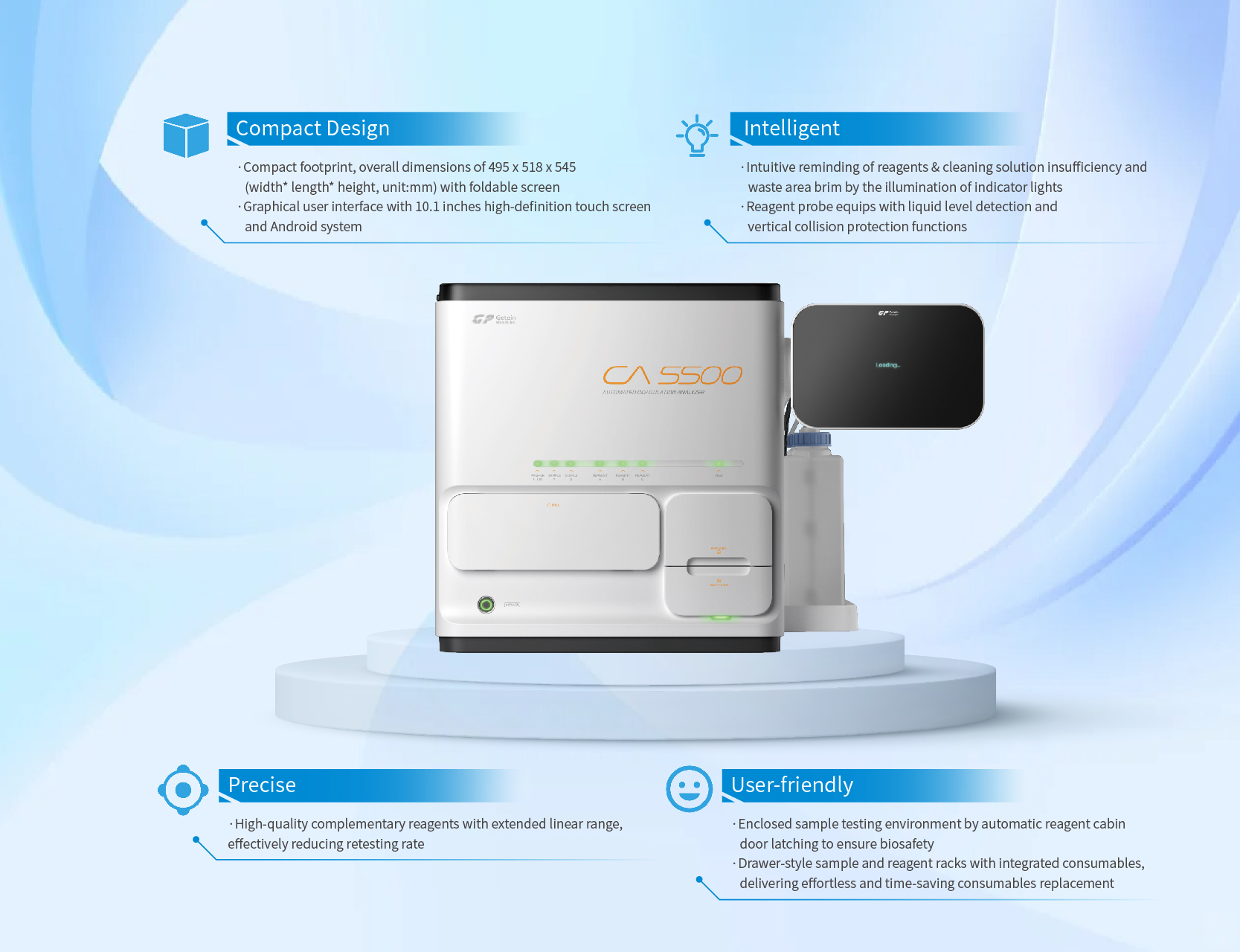

CA-5500 provides a compact and reliable solution for laboratories and hospitals with hemostasis testing needs. This integrated analyzer utilizes transmitted light detection for clot analysis, as well as chromogenic and immunoturbidimetric methods for specialty testing. The combination of high-quality results and rapid throughput makes it an outstanding choice for a wide range of applications.
The fully automated HIL sample solution provides superior resistance to sample interference
Sample incubation module and reagent refrigeration system, ensuring exceptional accuracy of results
The STAT function prioritizes emergency samples, ensuring they are processed immediately
Reduce dead space volume of reagent

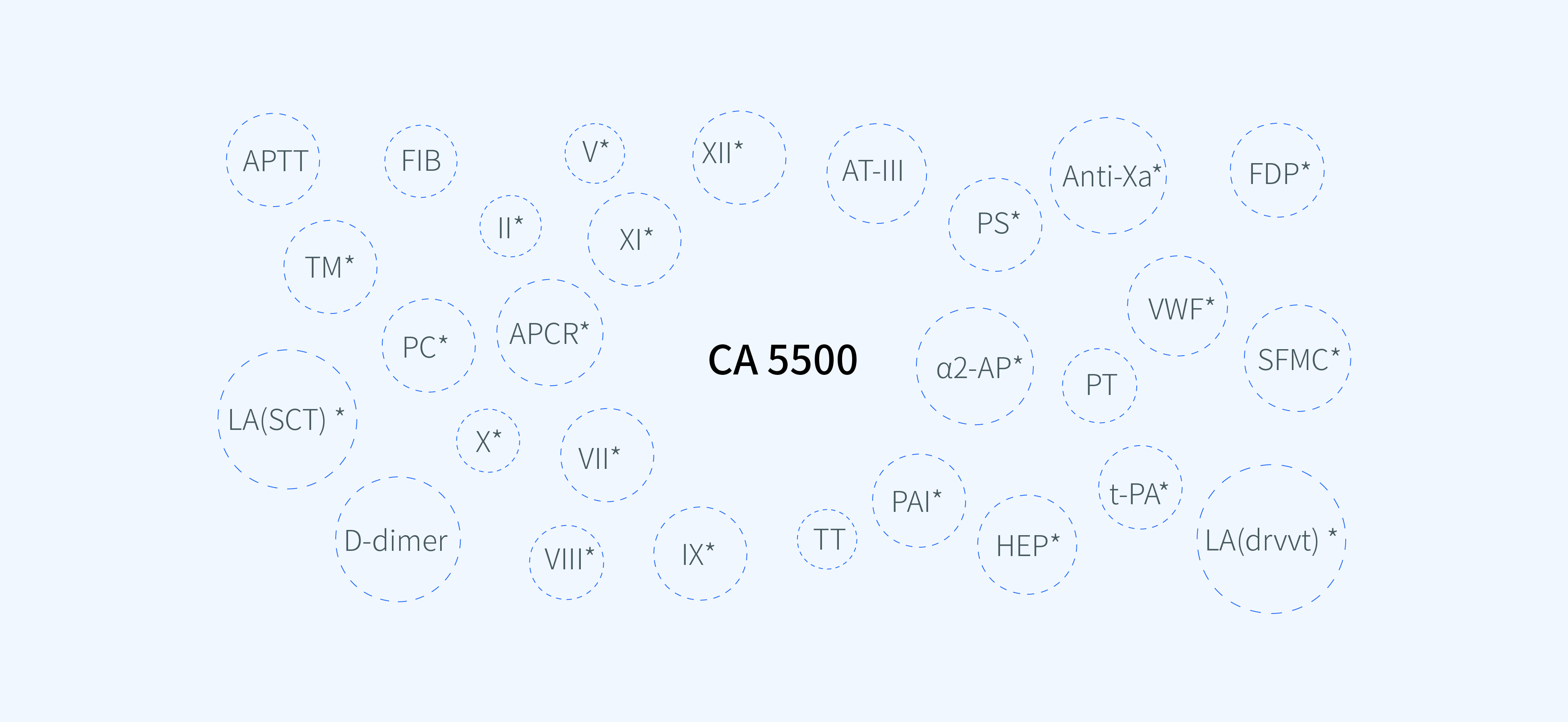

Methodology: Clot, chromogenic and immunoturbidimetric principles
Throughput: 200 T/H
Sample Positions: 20
Reagent Positions: 20
Storage Capacity: 100,000 reaction curves
Operation: 10.1 inches high-definition touch screen
Dimensions: 518 mm x 495 mm x 545 mm (L x W x H)
Weight: 40 kg
Reagent Cabin: 14.0 ℃ ± 1.0 ℃
Incubation Area: 37.0 ℃ ± 1.0 ℃
Reagent Probe: 37.0 ℃ ± 1.0 ℃
Testing Area: 37.0 ℃ ± 1.0 ℃
