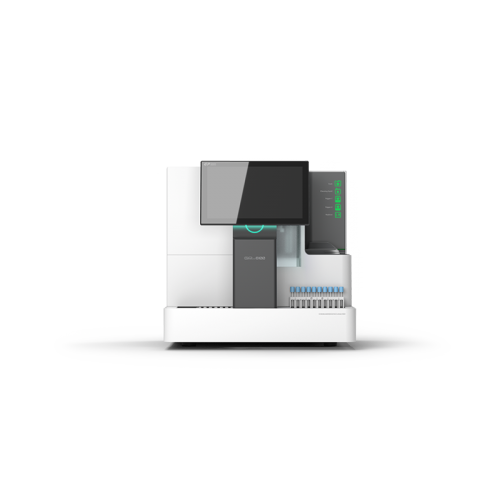

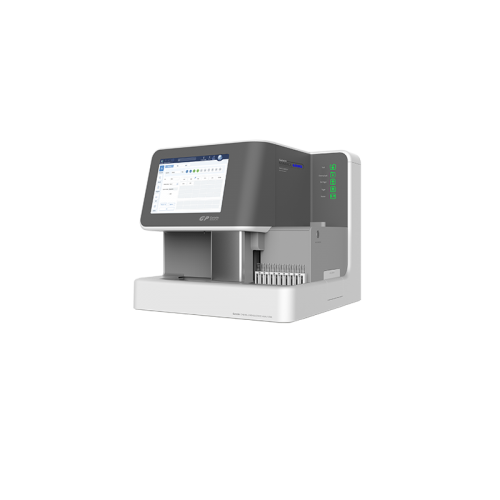

Key Features Compact Design Bench top design Relatively lighter weight: 80 kg High Efficiency Throughput: up to 200 T/HFastest time for the first result: 10 min Dual-Tray Consumable Design 2 independent consumable trays, support replacement without pause 140 reaction cups per tray Smooth Reagent Management 24 reagent positions, support online loading PE film puncture technology, preventing reagents from evaporationEquipped with RFID, automatic identification of reagent information Application Scenarios Medical Laboratories Clinics Health Check-up Center Test Menu Technical Specifications Test Principle: Acridinium ester direct chemiluminescence Throughput: Up to 200 T/H Fastest Time for the First Result: 10 min Reagent Positions: 24 Sample Positions: 50 Sample Type: Serum, plasma, urine, fingertip blood Application Scenarios: Laboratory, Clinics, Emergency, ICU, Wards Sampling Method: Steel needle STAT: Support STAT mode Sensing Functions: Liquid level detection, residual monitoring of reagent and sample, anti-collision Reaction Cups: 2 individuals consumble trays with 140 reaction cups each Reaction Temperature: 37℃±0.5℃ Magnetic Seperation & Washing: 3-step magnetic separation and 3-step washing Dimensions: 685 mm(L)*690 mm(W)*660 mm(H) Weight: 80 kg
Key Features Constant Temperature 37℃ constant incubation environment, allowing for more accurate test results Ultra-long Working Time Continuous operation for approximately 8+ hours Portable Design Dimensions: 185 mm (L) × 80 mm (W) × 54 mm (H) Weight: 500 g Convenient Operation Easy operation provides quick hands-on time Reliable Accuracy Good correlation with CLIA method, reduced influence by temperature and improved detection accuracy Application Scenarios ICU Laboratory Emergency Clinic Test Menu Techinical Specifications Sample Type: serum, plasma, whole blood, capillary blood, urine Sample Volume: 10-200 μL depending on the assay Dimensions: 185 mm (L) × 80 mm (W) × 54 mm (H) Weight: 500 g Display: 5”LCD touch screen, 720*1280 resolution Operating System: Android system Repeatability: CV≤ 2% within range [100, 15000] mV, CV≤ 10% within range [0,100) mV Temperature: 10℃-35℃ Relative Humidity: ≤ 70% Air Pressure: 70.0 kPa- 106.0 kPa Connectivity: Equipped with USB Type-C port;Support WiFi wireless network communication;Support 4G network communication Power Supply: Rechargeable lithium-ion battery 3700 mAh Language: English/Spanish/Chinese/Customized
Key Features Highly Efficient & Accurate Advanced fluorescence immunoassay Multiple quality control Convenient Operation RFID card calibration Continuous test for 3 hours with lithium battery Real-time and Rapid Test 3-15 min/test 5 sec/test for multiple tests User-friendly Interface Android system 7-inch touch screen Application Scenarios ICU Laboratory Emergency Clinic Test Menu Technical Specifications Methodology: Fluorescence Immunochromatography Channels: Single channel Sample Types: Serum, plasma, whole blood, urine, feces, fingertip blood, nasal swab, saliva Detection Time: 3-15 minutes Printer: Built-in thermal printer, paper size 5735 mm Display: 7.0-inch LCD color capacitive touchscreen, resolution 1024600, supports touch and handwriting operations Dimensions: 261 mm (L) × 241 mm (W) × 115 mm (H) Net Weight: Main unit 2000g, power adapter 430g, lithium battery pack (optional) 300g Operating System: Android system Data Storage: Stores 10,000 results (reagent storage capacity of 100,000, but excessive storagemay cause the Android system to crash; timely data cleanup is recommended) Communication Input: One SD card (old) slot, two USB ports Communication Output: One RS232 serial port, one Ethernet port Languages: English, Chinese, Spanish, Portuguese Repeatability: CV ≤ 2% within range [100, 15000] mV; CV ≤ 10% within range [0, 100) mV
Key Features Fast And accurate tests with small footprint High throughput at 400 T/H can satisfy needs from different hospitals and laboratories Compact footprint, maximizing space utilization efficiency Flexible expansion for modular system Support expansion of centrifuge and decapper module / analysis modules Flexible combination of 4 analysis modules at most, fulfilling requirements from multiple laboratories High automation level Automatic sample loading and scanning, automatic weight balanced in centrifuge module without manual operation Intelligent software system Support auto-dilution and auto-retests Monitor real-time instrument status, testing status, reagent reserve and consumables status Application Scenarios Medical Laboratories Indipendent Clinical Laboratory Health Check-up Center Test Menu Technical Specifications Methodology: Acridinium ester direct chemiluminescence Analysis Methods: Sandwich method, competition method Test Items: 118 items. Up to 85 items tested simultaneously Test Speed: Up to 400 T/H Fastest Time for the First Result：12 min Sample Volume: 10 uL~150 uL (1 uL increment) Sample Loading：Sample loading by tracks, sample/return/emergency track Maximum Loading capacity: 190 sample positions Reagent Volume: 10 uL~150 uL (0.1 uL increment) Reagent Tray: 30 reagent positions Cooling Function: internal air circulation cooling with a range of 4~8℃ Cuvettes：Using mainstream circular cuvettes, up to 2000 can be stored in hopper at a time Incubation Temperature: 37±0.2°C Preheating Time：<15 min Magnetic Separator Cleaning: Four-step magnetic separation, four-step cleaning Dimensions: 1100 mm (L) x 930 mm (W) x 1200 mm (H)
Key Features Intelligent Sample Management Module Compatible with different types of sample tubes Automatic recognition of sample height and tube cap Efficient Track, Emergency in Priority 3 sample tracks: emergency loading, regular loading and sample returning Independent emergency track, emergency samples in priority Test Cups and Washing Unit Tilt-pour test cups loading, with a maximum capacity of 2000 Four-step washing for more thorough cleaning Reagent Tray Module 30 reagent positions for simultaneous testing of up to 30 different items RFlD recognition of reagents, dynamic refreshing of reagents status Flexible Expansion Compact footprint Flexible expansion of multiple pre-analytical and clinical chemistry/immunochemistry modules Flexible combination of 4 analytical modules at most Application Scenarios Hospital Labs Diagnostic Centers Check-up Centers Test Menu Techinical Specifications Test Principle: Acridinium ester direct chemiluminescence Analysis Methods: Sandwich method, competition method Throughput: Up to 600 T/H Fastest Time of First Result: 12 min Reaction Cup: Using mainstream circular reaction cup, up to 2000 pieces can be stored at a time Reagent Tray: 30 reagent positions with 2-8 ℃ internal air circulation refrigeration Dimensions: : 1100 mm (L) x 873 mm (W) x 1232 mm (H) Sample Volume: 5 μL~150 μL (1 μL increment) Sample Probe: Probe clog detection, horizontal collision prevention, vertical collision prevention, liquid level detection Reagent Volume: 10 μL~ 150 μL (1 μL increment) Reaction Tray: 183 incubation positions, non-contact vortex mixing Carryover Contamination Rate: ＜ 0.1 PPM Test Cup: Maximum 2000 units Heating Method: Direct solid heating Magnetic Separation Washing Station: 4-step magnetic separation, 4-step washing
Key Features Portable Dimensions: 299 mm (L) × 276 mm (W)× 152 mm (H) Weight: 4 kg Instant Results Get results in 3-15 minutes Detection Performance Improved Reduced influence by temperature and improved detection accuracy Reliable Accuracy Good correlation with CLIA methodConvenientEasy to operate, user friendly interfaceAuto Cartridge Collection Automatically receive the used test cards when the test is finishedTechnical Specifications Application Scenarios ICU Laboratory Emergency Clinic Test Menu Technical Specifications Dimensions: 299 mm (W) × 276 mm (D)× 152 mm (H) Weight: 4 kg Printer: Built-in Thermal Printer, support for external printer Display: 10.1'' LCD touch screen Connectivity: Ethernet port for LIS/HIS COM port for PC ;2 USB ports for software update and file copy Sample Type: serum, plasma, whole blood, capillary blood, urine, swab, saliva, stool Sample Volume: 10 ~ 200 μL depending on the assay Language: English/Spanish/Chinese/French Repeatability: CV ≤ 2% within range [100, 15000] mV ; CV ≤ 10% within range [0, 100) mV
Key Features Support Whole Blood Samples Equipped with HCT module, support W.B. samples, no need for centrifugation Test HCT of W.B. sample and calculate to serum volume, designed for emergency use Complete Automation Automatic sample loading, mixing, decapping and recapping, original tube-based sample in and out operation Add samples with disposable tips to avoid cross-contamination Automatic liquid level detection and pressure recognition to avoid empty aspiration Non-stop Replacement of Consumables Dual consumables trays design, tips and test cups integrated consumables box Support consumables replacement with no pause, easy for operation High-throughput Sample Management Module 50 sample positions, support continuous sample loading Automatic alarm of empty aspiration and no detection of samples Support STAT mode for emergency Intelligent Reagent Module 24 reagent positions, support on-board loading Silicone stopper puncture technology, prevent reagents from evaporation Automatic recognition of reagents by RFID, eliminate manual RFID scanning Application Scenarios Hospital Labs Diagnostic Centers Check-up Centers Test Menu Techinical Specifications Test Principle: Acridinium ester direct chemiluminescence Analysis Methods: Sandwich method, competition method Throughput: Up to 200 T/H Fastest Time of First Result: 9 min Sample Positions: 50 sample positions Reagent Positions: 24 reagent positions Sample Type: Whole blood, serum, plasma, urine, fingertip blood Sampling Method: Disposable tips Test Mode: Batch/Random/STAT Dimensions: 702 mm (L) * 695 mm (W) * 670 mm (H) Screen: 15.6” LCD full touch screen Data Transmission: LIS/HIS connectivity Sensing Functions: Liquid level detection, bubble detection, probe clogging detection, temperature monitoring, consumables inventory monitoring
