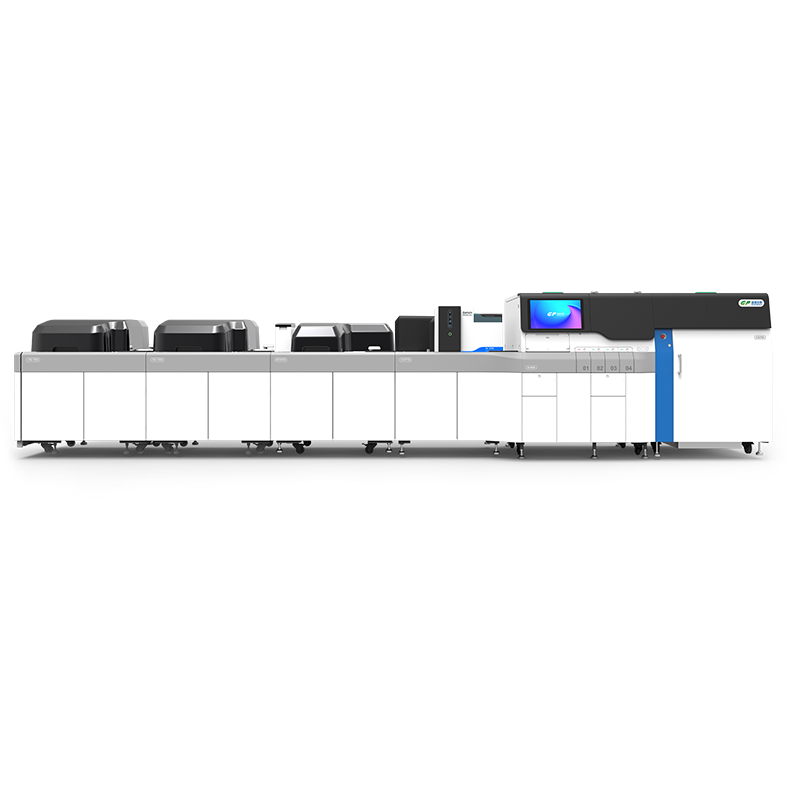

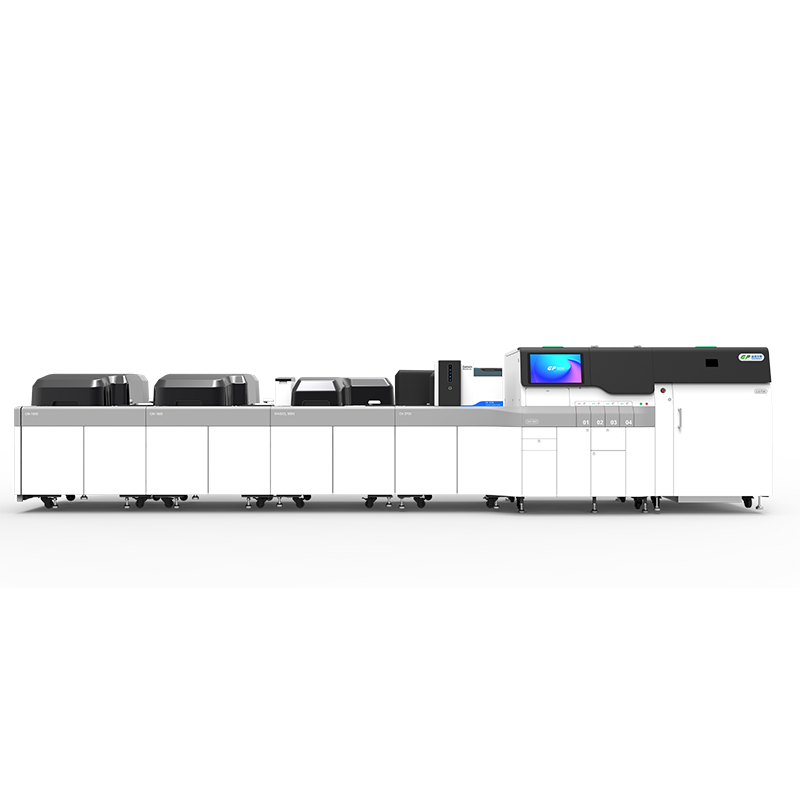

Metis 7000 is an automated system that optimizes workflows and increases efficiency, allowing more time for critical treatments. It supports modular expansion and optional integration of pre-analytical system, all while maintaining a compact design.
Utilizes an automated and streamlined workflow design to significantly reduce manual operational load
Independent emergency track, striving for more treatment time

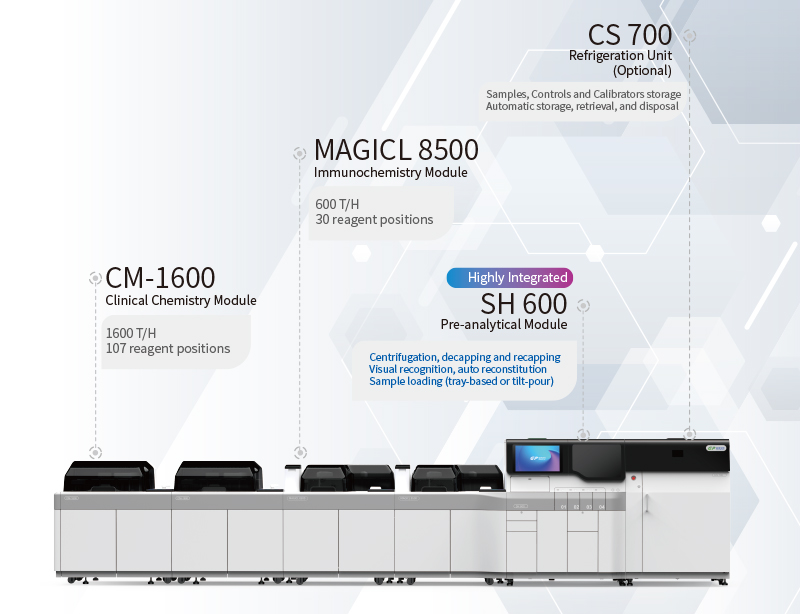

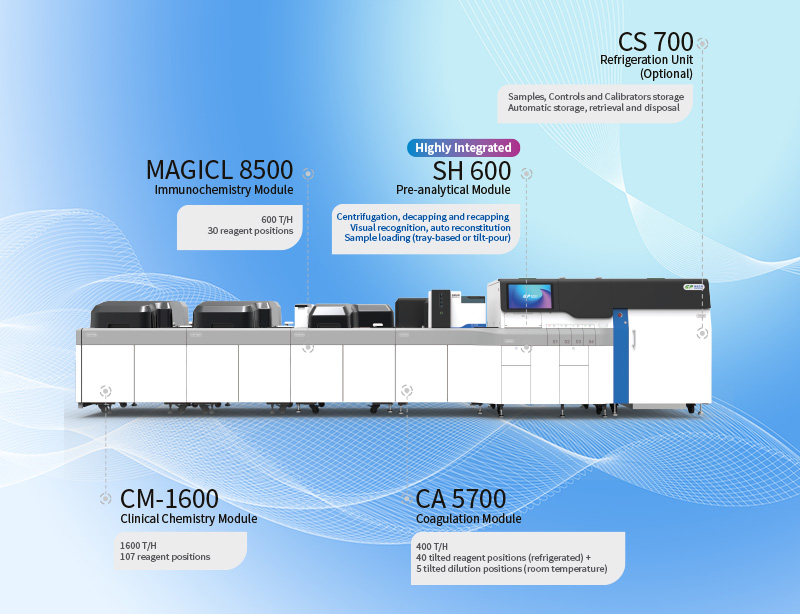

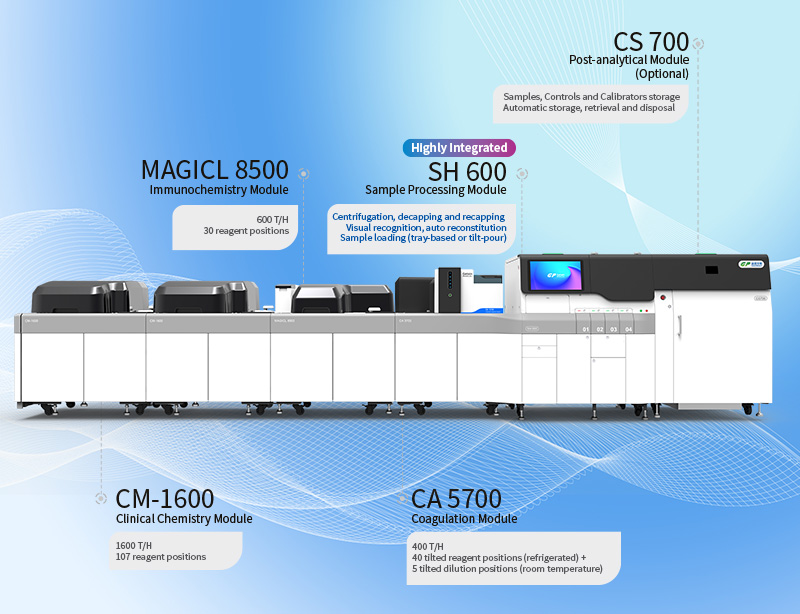

Flexible expansion enables the combination and collaboration of 1-4 modules
Optional choice for CS 700 system (Storage, retrieval and disposal)
Metis 7000 takes up only 2.5㎡ for two modules (without centrifuge or refrigeration)
Only increasing 1.0 ㎡ for adding 1 more analytical module
Optional CS 700 refrigeration unit can realize:
Automated temperature-controlled cold storage for test tubes, quality controls, and calibrators
Positioning recognition and automated transfer of sample trays
Automatic disposal of expired or waste samples

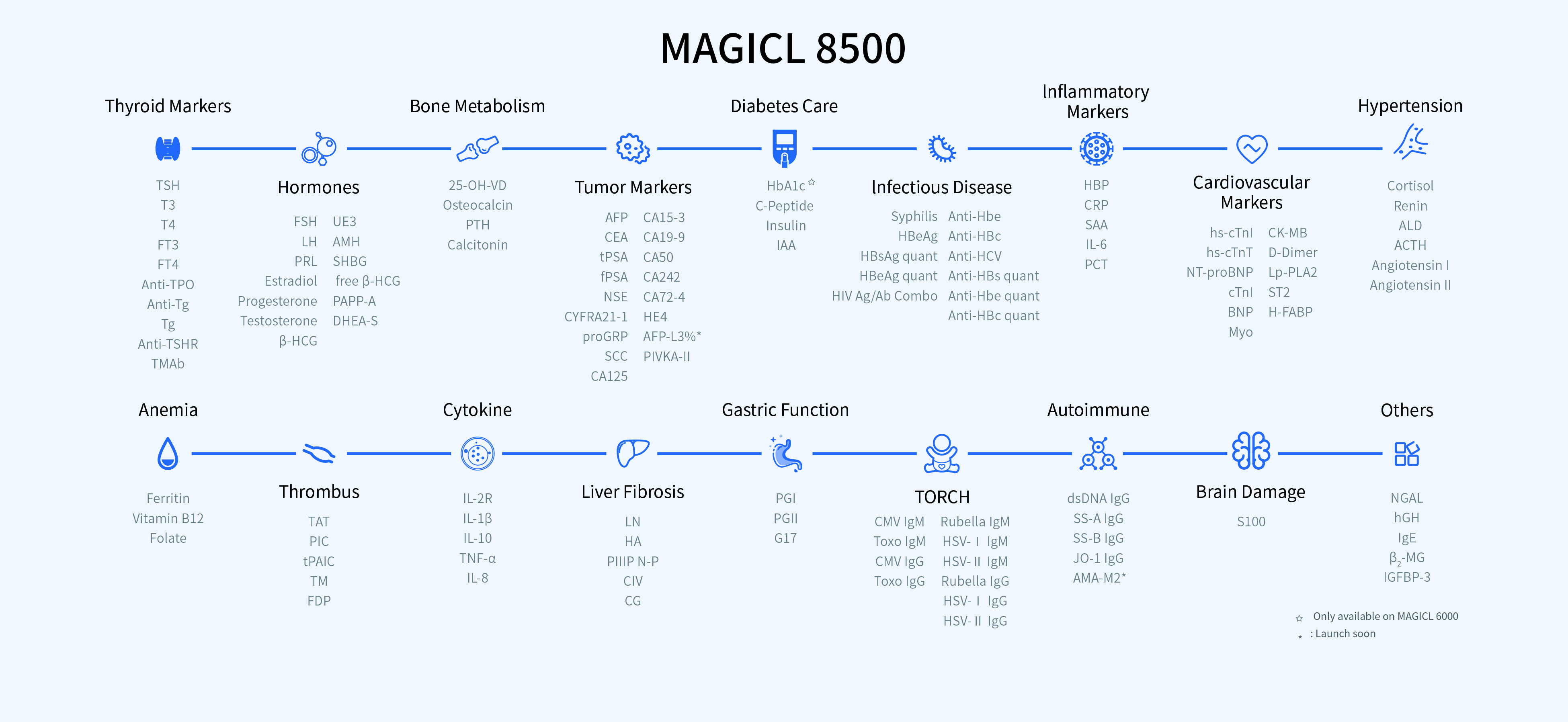

Test Principle: Acridinium ester direct chemiluminescence
Throughput: Up to 600 T/H
Fastest Time of First Result: 12 min
Using RFID to dynamically update reagent status
Tilt-pour test cup loading, maximum capacity of 2000 units
Dimensions:1100 mm(L)×873 mm(W)×1232 mm(H)
Throughput: Constant speed of 1600 T/H; optional ISE module: 600 T/H

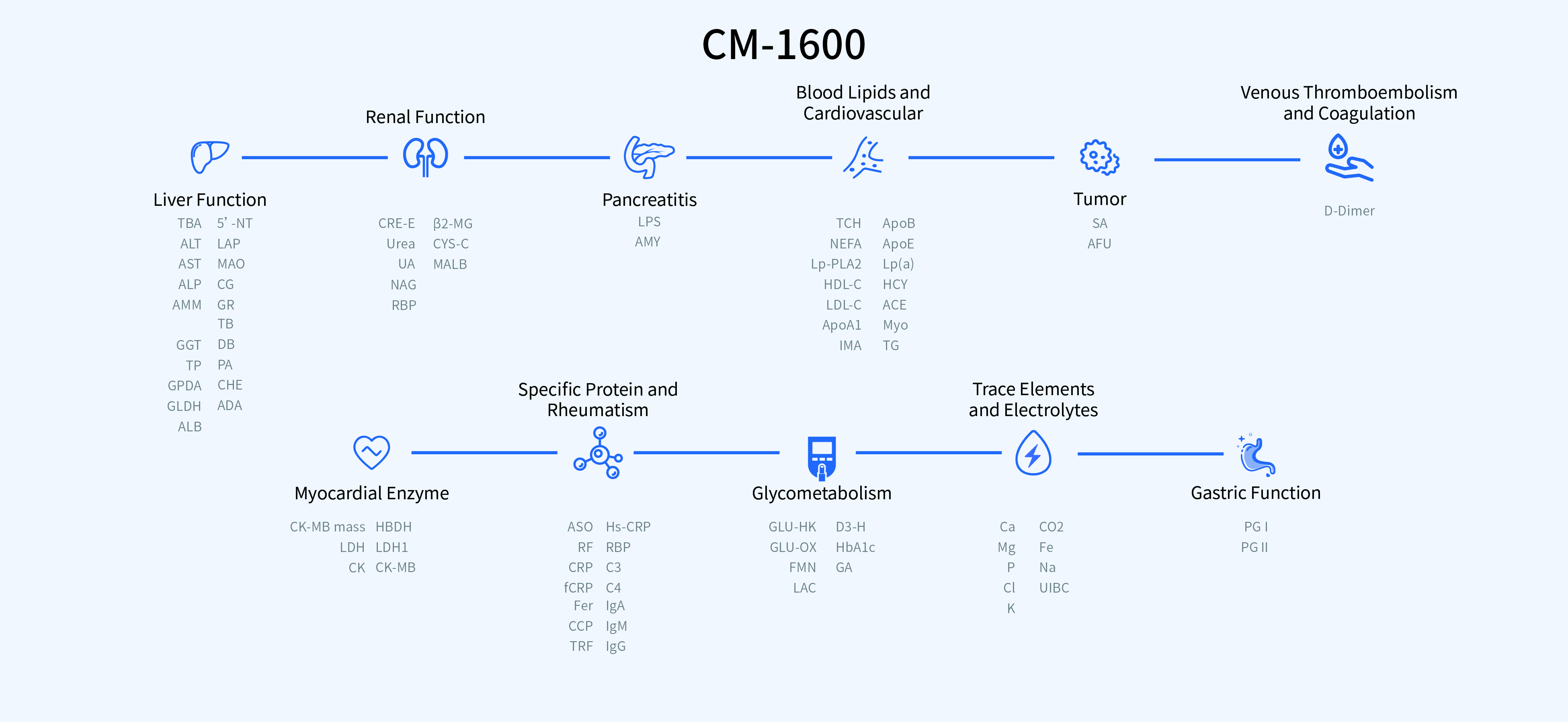

Testing up to 66 items at the same time (ISE included)
Reagent Positions: 107
Sample needle ultrasonic washing
Acid solution, alkaline solution, 8-step warm water washing
Dimensions:1100 mm(L)×873 mm(W)×1220 mm(H)
