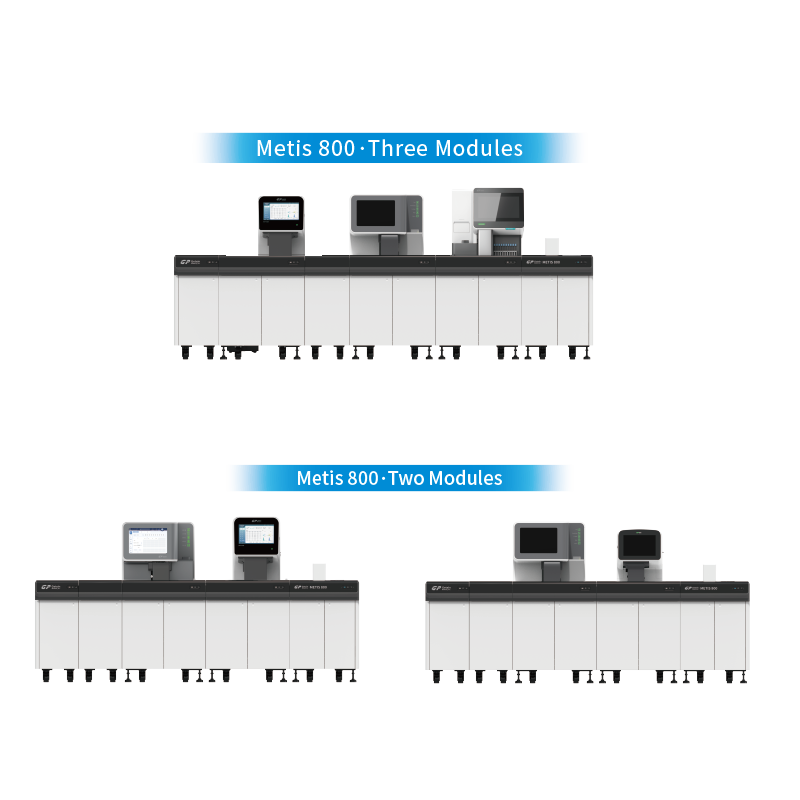

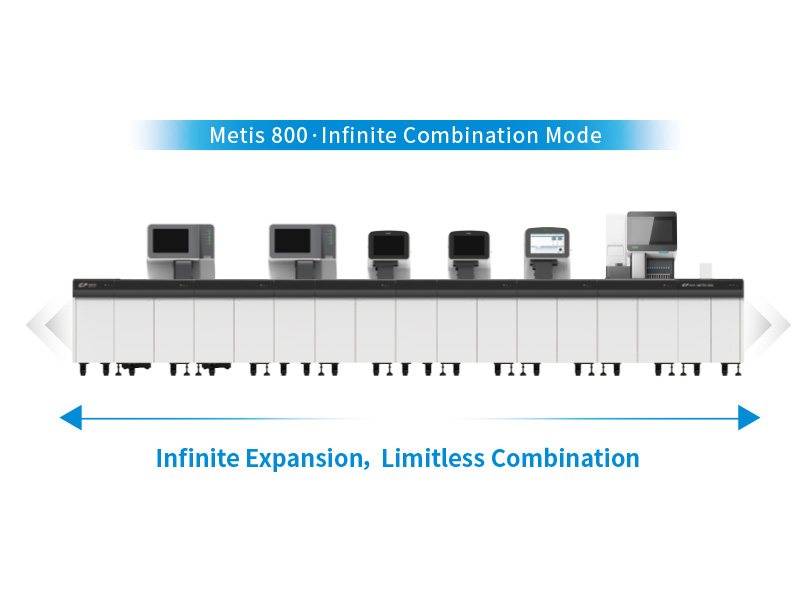

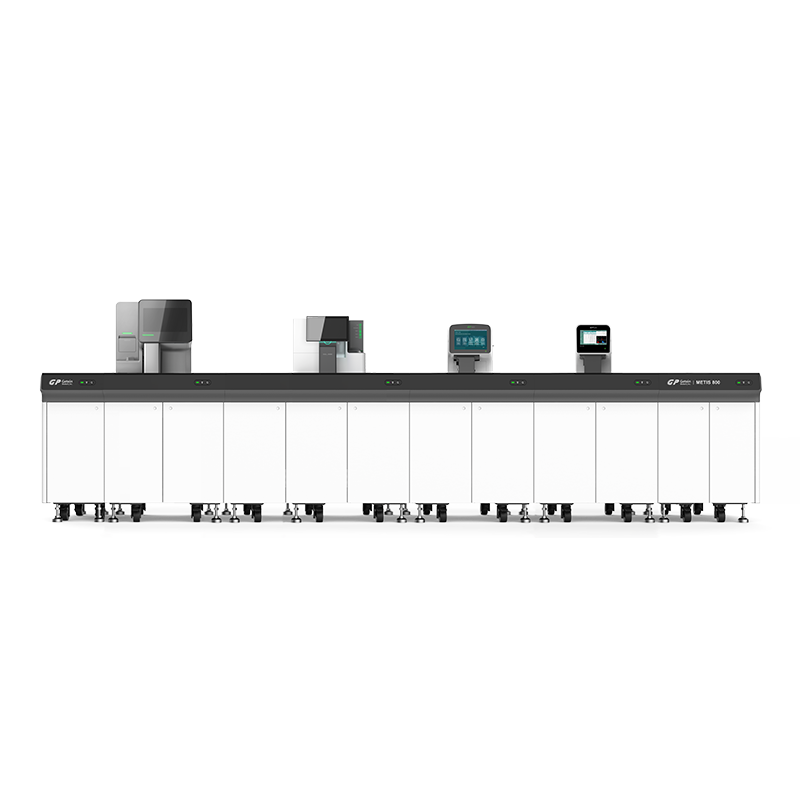

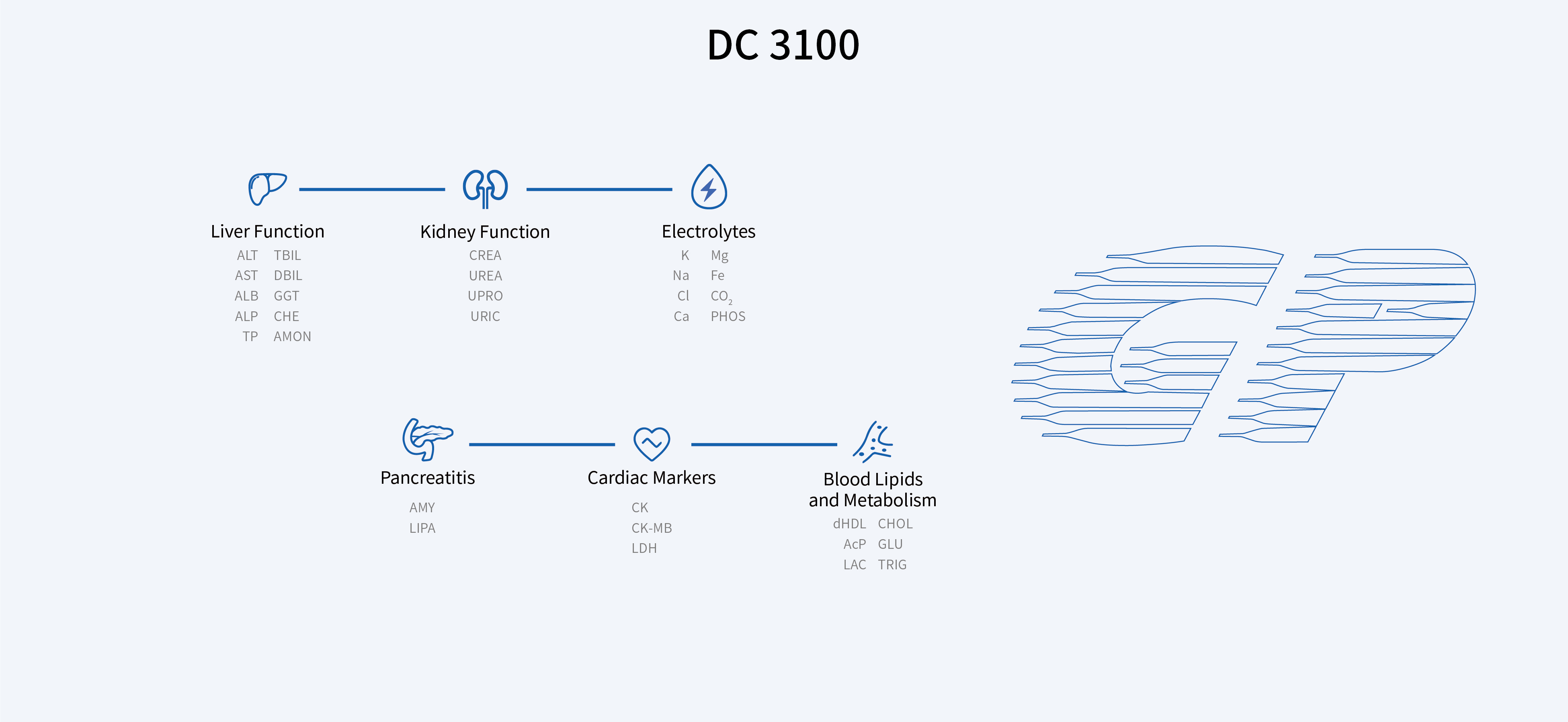

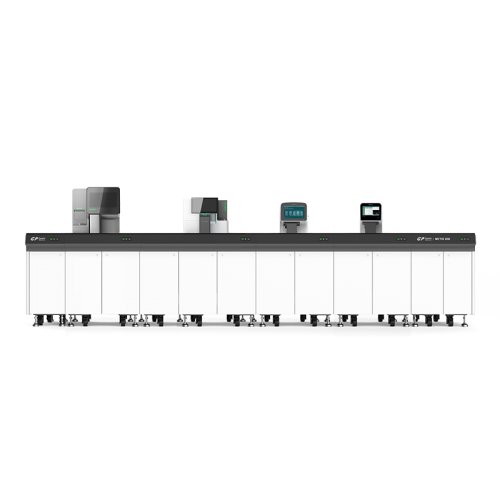

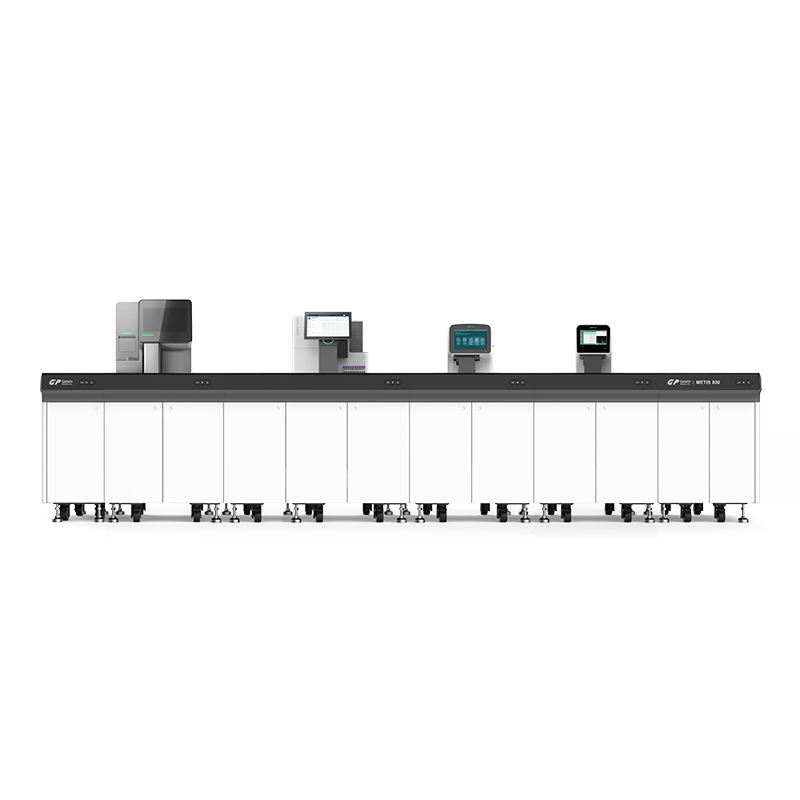

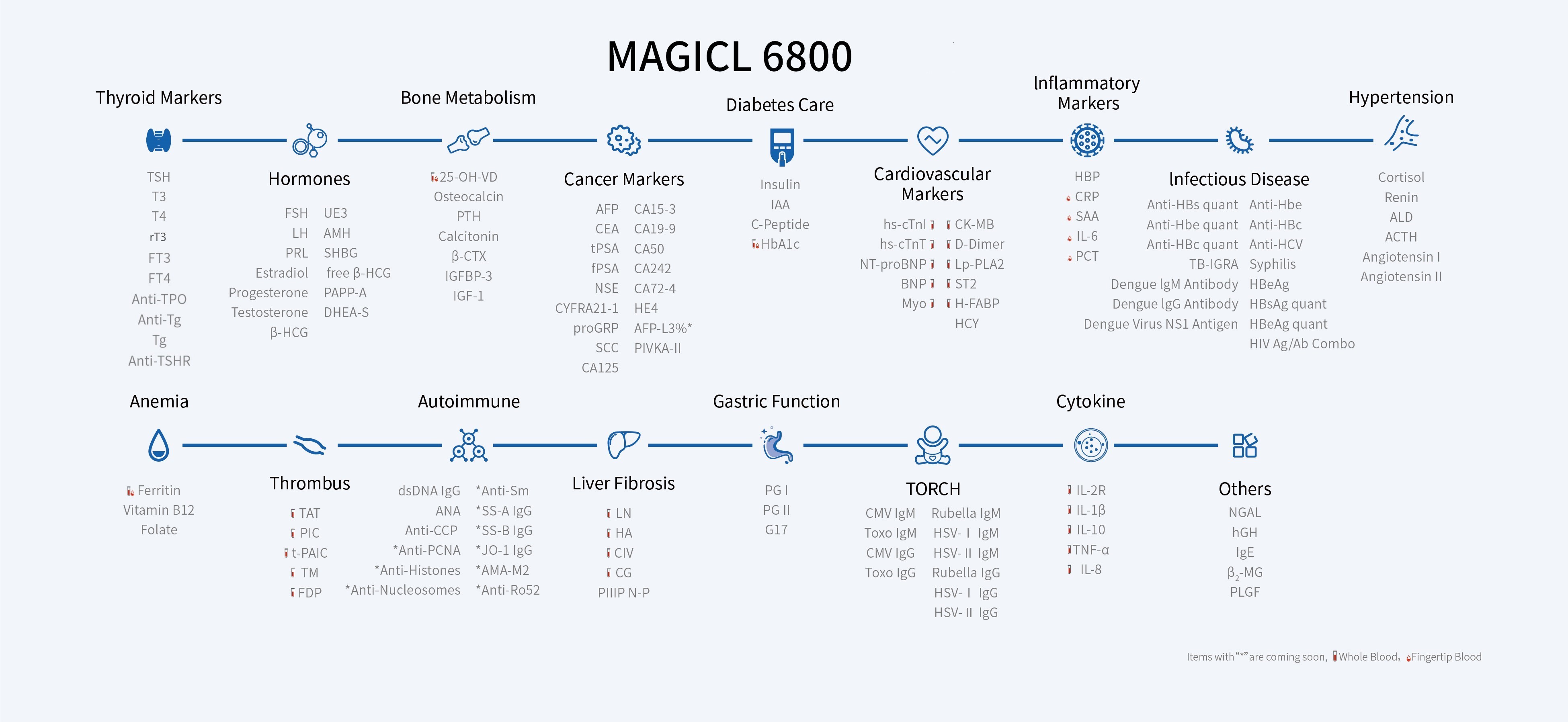

Metis 800 is a modular system with outstanding performance, it seamlessly integrates multiple laboratory diagnostics into a single and unified solution. The chemiluminescence module (MAGICL 6000), clinical chemistry module (DC 3100 dry system), immunofluorescence module (Getein 1200) and hematology module (BHA-5100) can be flexibly combined to satisfy your specific needs.
One-button switch design
Real-time status monitoring
Full-process automated testing
Whole blood testing in one tube, no centrifugation required
One-time sampling, entry, and loading shortens sample turnaround time
Pre-loaded tray for 200 samples, freeing operators' hands
Inner track for sample testing, providing sample tube caching function
Outer track for sample tube rack rapid allocating
Batch processing of capillary blood samples, addressing challenges in blood collection for difficult-to-draw patients

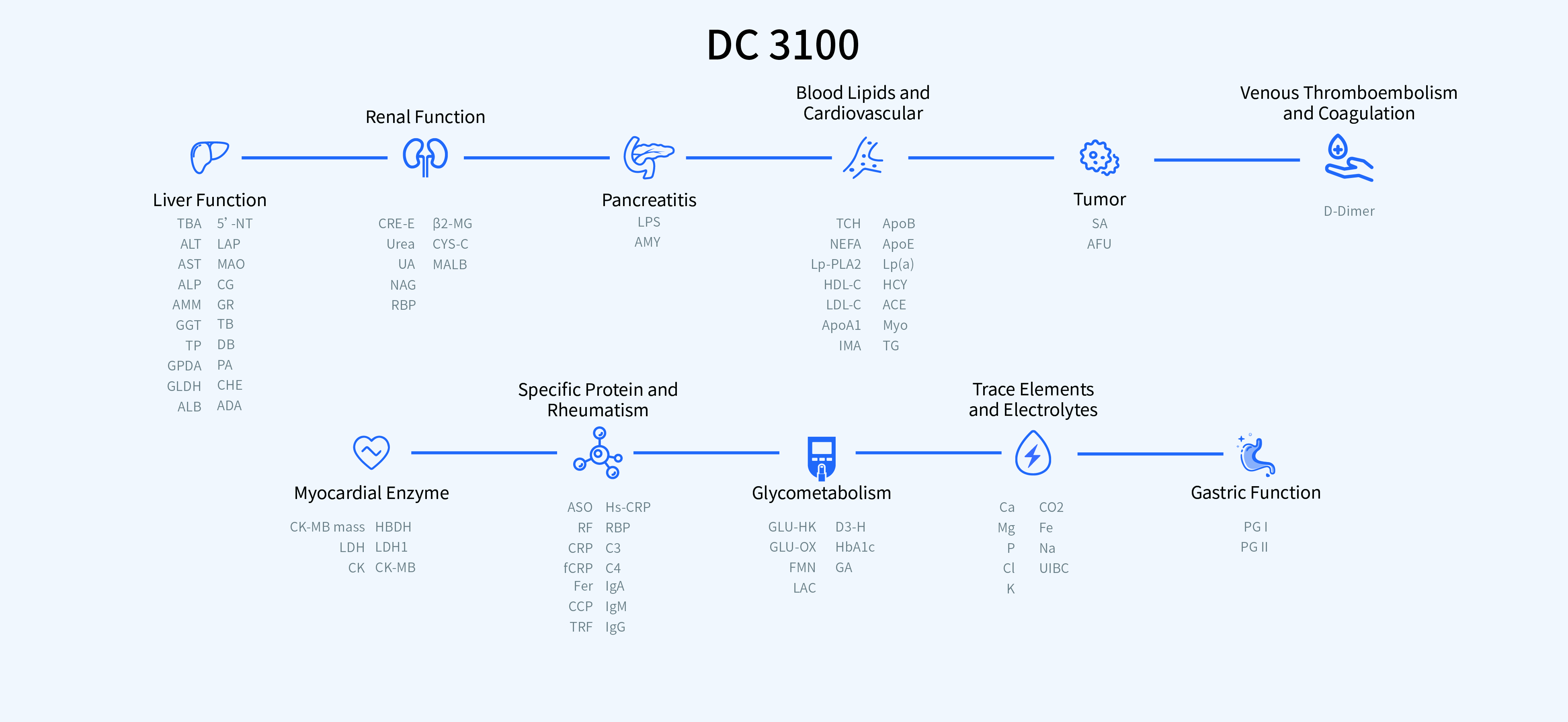

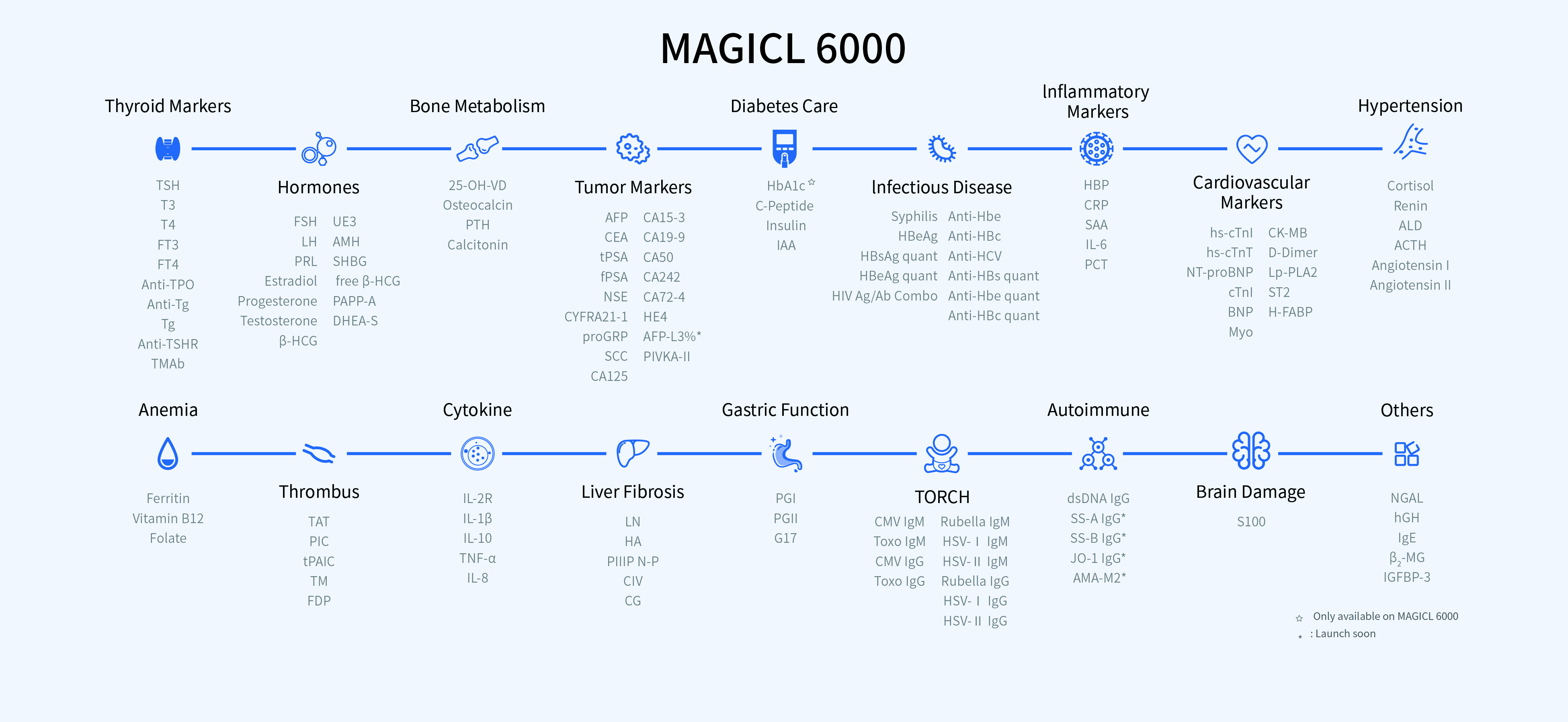

Comprehensive test menu, covering women's and pediatric health with ease
BHA-5100 Automatic Hematology Analyzer
Dimensions: 705 mm (L) x 670 mm (W) x 570 mm (H)
Weight: 21 kg
Methodology: Flow cytometry, impedance method, colorimetry
Throughput: 60 T/H

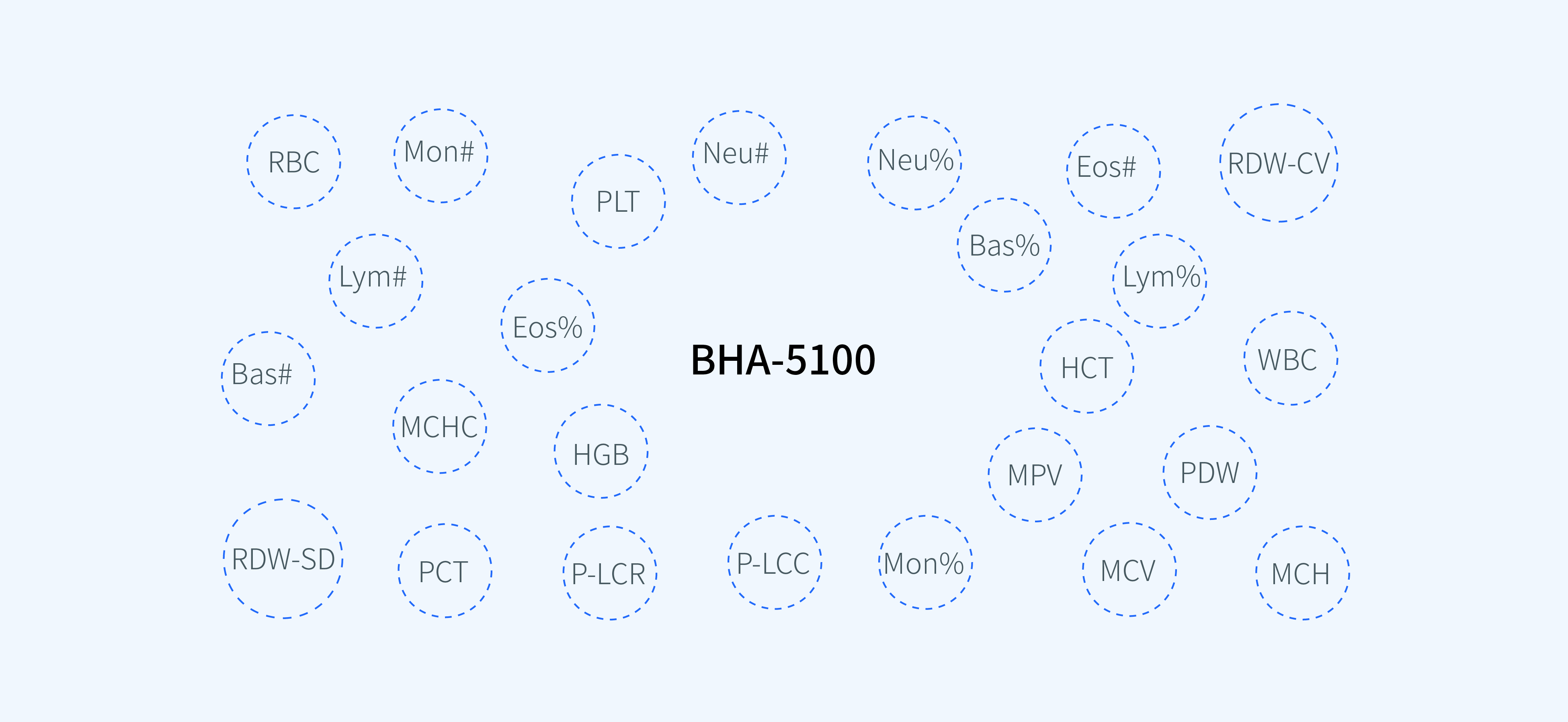

Test Items: 25 reportable parameters
Quality Control Method: L-J quality control, X-B quality control
Storage Capacity: > 100, 000 patient data
Gem Hole: 50 μm
Sample Volume: 15 μL
Reagents: 1 diluent and 2 lysers

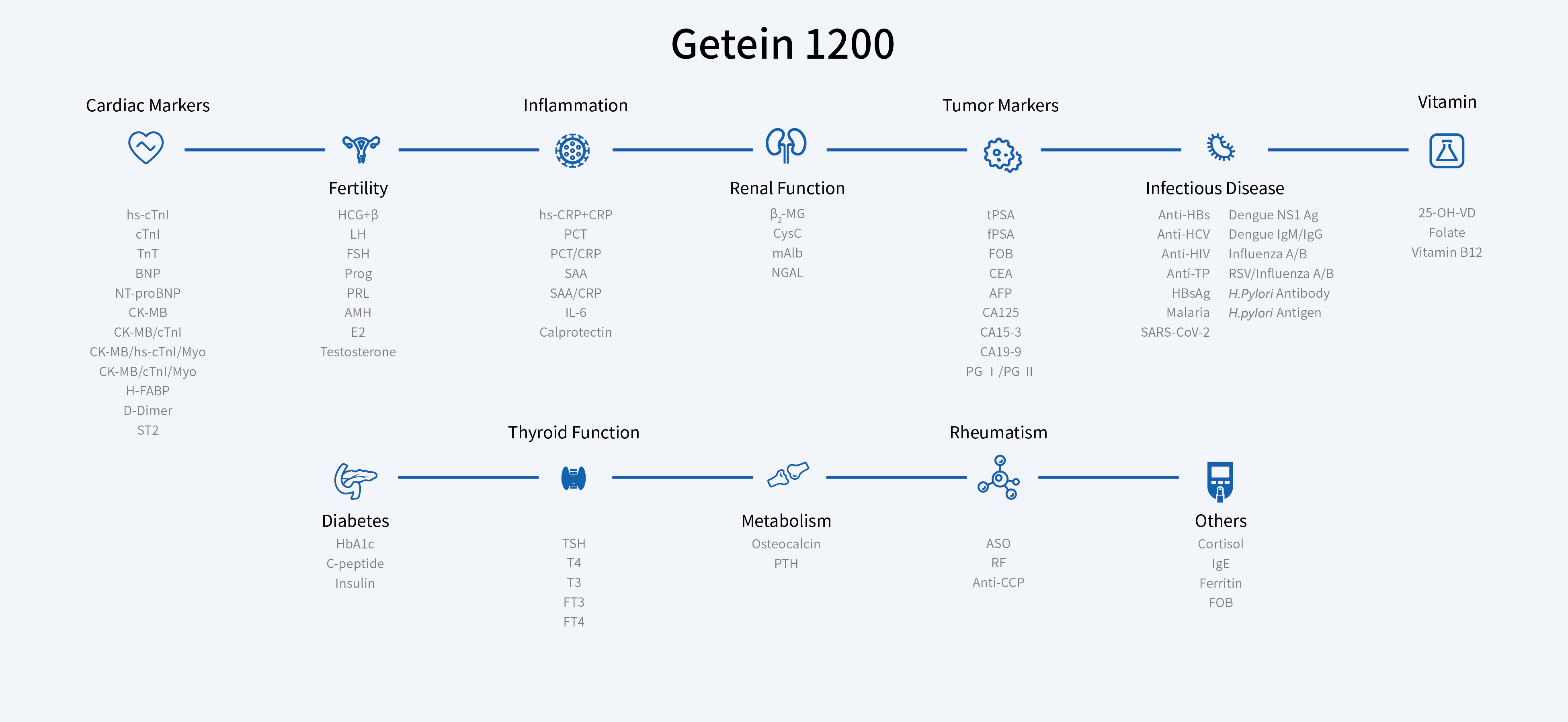

Getein 1200 Immunofluorescence Quantitative Analyzer
Dimensions: 570 mm (L) x 675 mm (W) x 574 mm (H)
Weight: 43 kg
Methodology: Quantitative immunofluorescence
Sample Positions: 50, continuous sample loading
Reagent Positions: 4 x 24/48
Throughput: 100 T/H

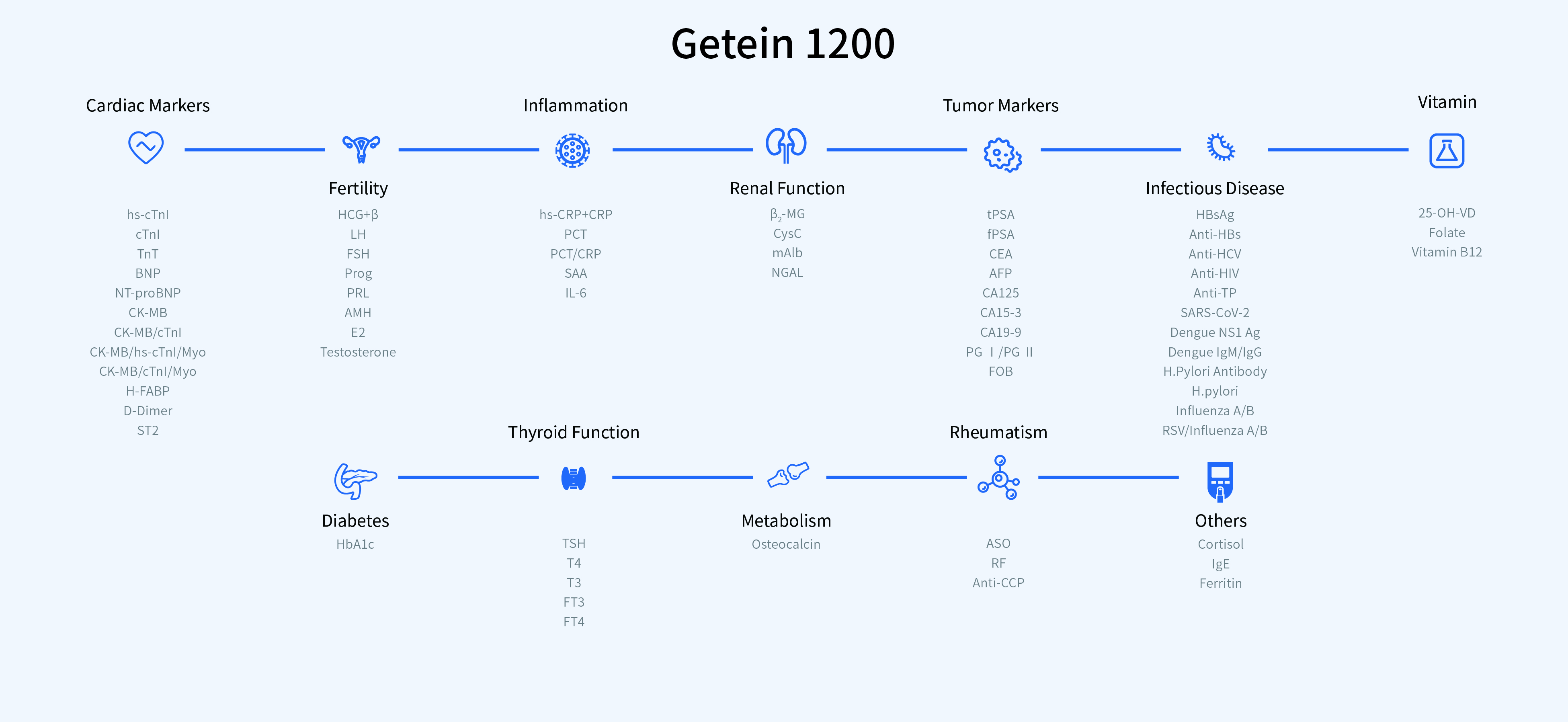

Test Items: 59 items in 13 fields
Storage Capacity: 100, 000 test results
Dry System: ADP aspiration, no liquid path
Automation: Automatic sample loading, mixing and decapping
