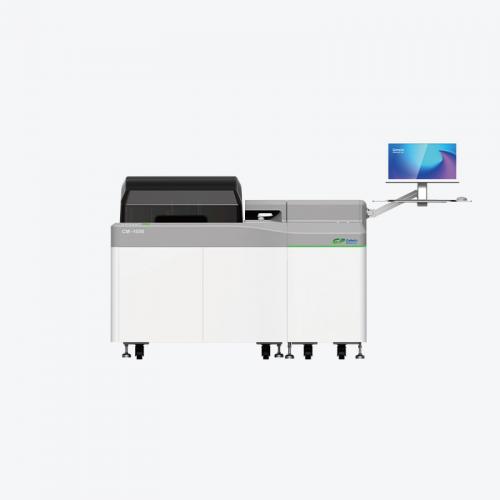

Key Features High-effciency Sample Processing Constant throughput: 800 T/H, optional ISE module with 400 T/H 137 samples positions, 114 reagent positions Dry Heating Thermostatic System Direct heating system enables faster heating and decreases pre-heating time Thermostatic system by dry heating keeps reaction solution in cuvettes at (37.0±0.2）℃ High-efficiency Triple Mix Bars Triple mix bars with two-stage cleaning, avoiding stirring rod contamination Real-time monitoring of stirring speed Accurate Sampling System Internally and externally polished sampling probes, high-precision Liquid volume tracking and level detection Intelligent Online Loading System Reagents can be loaded on-board during test Peltier system provides a longer maintenance period to reduce repair probability 9-step Warm Liquid Washing Whole probe stereo cleaning technology with cross-contamination rate＜0.05% Anti-overflow function prevents liquid spillage Application Scenarios Hospital Labs Diagnostic Centers Academic Research Institutes Test Menu Technical Specifications Test principles: Latex immunoturbidimetry, immunoturbidimetry, colorimetry Test Methods: Rate method, end point method, fixed-time method Dimensions: 1640 mm (L) * 940 mm (W) * 1215 mm (H) Gross Weight: 500 kg Sample Positions: 137 positions Reagent Positions: 114 positions Sample Types: Serum, plasma, whole blood, urine, and cerebrospinal liquid samples Application Scenarios: Hospital Labs, Diagnostic Centers, Academic Research Institutes Water Consumption: No more than 40 L purified water per hour Dilution: automatic pre-dilution Minimum reaction volume: 100μL Minimum sampling volume: 1.5μL
Key Features Flexible Expansion Compact footprint, maximizing space utilization efficiency Flexible expansion of centrifuge and decapper module / analysis module(Clinical Chemistry Module CM-1000/Immunochemistry Module MAGICL 6200) High-effciency Sample Processing Constant throughput: 1000 T/H, optional ISE module with 400 T/H 180 samples positions, 103 reagent positions User Friendly Sampling Unit Compatible with different types of sample tubes, automatic recognition of sample height, tube cap and other characteristics Automatic scanning of barcodes on sample racks and tubes Accurate Sampling System Internally and externally polished sampling probes, high-precision Liquid volume tracking and level detection Advanced Track Unit 3 sample tracks: emergency loading, regular loading and sample returning Independent emergency track, emergency samples in priority 8-step Warm Liquid Washing Double-row cleaning design 8-step washing, more thorough cleaning Application Scenarios Hospital Labs Diagnostic Centers Academic Research Institutes Test Menu Technical Specifications Test principles: Latex immunoturbidimetry, immunoturbidimetry, colorimetry Test Methods: Rate method, end point method, fixed-time method Dimensions: 1100 mm (L) * 930 mm (W) * 1200 mm (H) Gross Weight: 400 kg Sample Positions: 190 positions Reagent Positions: 103 positions Sample Types: Serum, plasma, whole blood, urine, and cerebrospinal liquid samples Application Scenarios: Hospital Labs, Diagnostic Centers, Academic Research Institutes Water Consumption: No more than 20 L purified water per hour Minimum reaction volume: 100μL Minimum sampling volume: 1.5μL
Key Features Sample In - Result Out Compact design &All-in-One system Fully automated nucleic acid extraction→PCR amplification→detection→analysis Quick Test Fastest turnaround time of 35 min from sample to result High Throughput Dual-module design, 12 test channels Multiple items could be detected simultaneously Room Temperature Transportation & Storage Advanced technology, freeze-dried reagent Convenient and cost- effective transportation Applicable Scenarios Medical Laboratories Clinics Health Check-up Center Test Menu Technical Specifications Test Principle: Real-time PCR Time for the Result: 35 min Channels: 12 Module Number: 2 Sample Type: Nasopharyngeal swab, conjunctiva swab, anal swab, feces, whole blood, serum, oral and nasal secretion, genital tract swab, urinary tract swab, lesion exudate, cervical swab, sputum Thermal Cycling Technology: Peltier Dimensions: 424mm(L)*420 mm(W)*234 mm(H) Weight: 13 kg
Key Features Sample In - Result Out Compact design &All-in-One system Fully automated nucleic acid extraction→PCR amplification→detection→analysis Quick Test Fastest turnaround time of 35 min from sample to result High Throughput Dual-module design, 4 test channels Multiple items could be detected simultaneously Room Temperature Transportation & Storage Advanced technology, freeze-dried reagent Convenient and cost- effective transportation Applicable Scenarios Medical Laboratories Clinics Health Check-up Center Test Menu Technical Specifications Test Principle: Real-time PCR Time for the Result: 35 min Channels: 4 Module Number: 2 Sample Type: Nasopharyngeal swab, conjunctiva swab, anal swab, feces, whole blood, serum, oral and nasal secretion, genital tract swab, urinary tract swab, lesion exudate, cervical swab, sputum Thermal Cycling Technology: Peltier Dimensions: 419mm(L)*310 mm(W)*233 mm(H) Weight: 9.5 kg

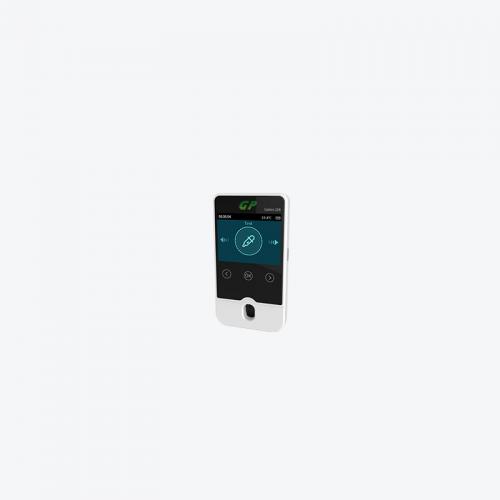

Benefits where you need Instant Results Get results in 3-15 minutes Detection Performance Improved Reduced influence by temperature and improved detection accuracy Dry clinical chemistry and immunofluorescence Supporting multiple test items Combo test, highly efficient Reliable Accuracy Good correlation with CLIA method 32℃ constant test environment Convenient Easy to operate, user friendly interface Benefits where you need ICU Laboratory Emergency Clinic Test Menu Technical Specifications Dimensions: 160 mm × 80 mm × 24 mm (D×W×H) Weight: 256 g Printer: Support for external Bluetooth thermal printer Connectivity: USB/Bluetooth/WIFI Calibration: SD Card Calibration Sample Type: serum, plasma, whole blood, capillary blood, urine, swab, saliva, stool Sample Volume: 10 ~ 200 μL depending on the assay Language: English/Chinese Cases Storage: Over 10,000 test cases Repeatability: CV ≤ 2% within range [100, 15000] mV; CV ≤ 10% within range [0, 100) mV
Key Features Highly Efficient & Accurate Advanced fluorescence immunoassay Multiple quality control Convenient Operation SD card calibration Continuous test for 3 hours with lithium battery Real-time and Rapid Test 3-15 min/test 5 sec/test for multiple tests User-friendly Interface Android system 7-inch touch screen Application Scenarios ICU Laboratory Emergency Clinic Test Menu Technical Specifications Methodology: Fluorescence Immunochromatography Channels: Single channel Sample Types: Serum, plasma, whole blood, urine, feces, fingertip blood, nasal swab, saliva Detection Time: 3-15 minutes Calibration: RFID Card Calibration Printer: Built-in thermal printer, paper size 5735 mm Display: 7.0-inch LCD color capacitive touchscreen, resolution 1024600, supports touch and handwriting operations Dimensions: 261 mm (L) × 241 mm (W) × 115 mm (H) Net Weight: Main unit 2000g, power adapter 430g, lithium battery pack (optional) 300g Operating System: Android system Data Storage: Stores 10,000 results (reagent storage capacity of 100,000, but excessive storagemay cause the Android system to crash; timely data cleanup is recommended) Communication Input: One SD card (old) slot, two USB ports Communication Output: One RS232 serial port, one Ethernet port Languages: English, Chinese, Spanish, Portuguese Repeatability: CV ≤ 2% within range [100, 15000] mV; CV ≤ 10% within range [0, 100) mV
