Automatic Clinical Chemistry Analyzer
Automatic Clinical Chemistry Analyzer
Automatic Clinical Chemistry Analyzer

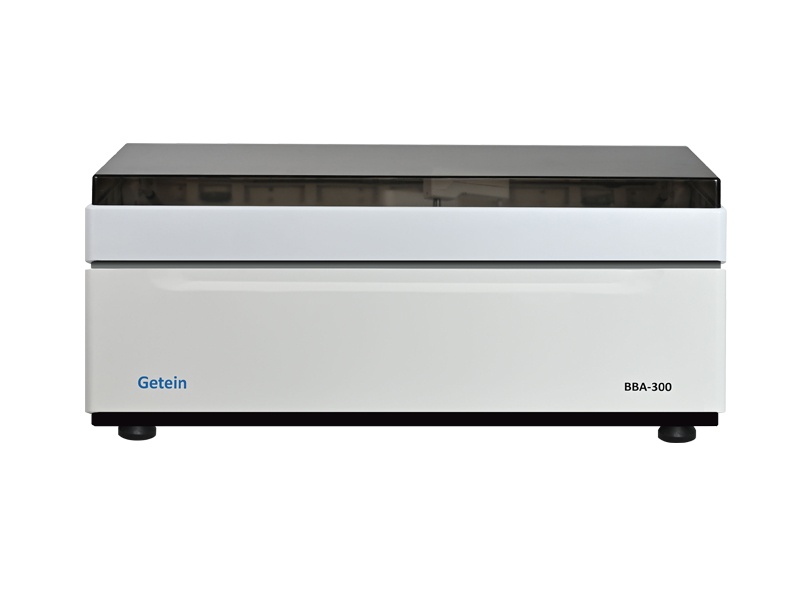

BBA-300 Automatic Clinical Chemistry Analyzer

  • Methodology:

    Turbidimetry, colorimetry
  • Sample Position:

    45 sample positions; 2 Emergency sample positions
  • Dimensions:

    Floor-standing: 1060 mm × 660 mm × 1230 mm, Benchtop: 1060 mm × 660 mm × 540 mm
  • Weight:

    Floor-standing: 140 kg, Benchtop: 85 kg

BBA-300

Automatic Clinical Chemistry Analyzer






“No-Wait” Emergency Test Mode

  • No need of pausing the testing procedure, emergency samples are given test priority and can be tested at any time during analysis.
  • Stable & reliable clinical chemistry test



Highly-Efficient and Convenient Test

  • Constant test speed of 300 T/h
  • Emergency samples in test priority at any time
  • LIS bi-directional connectivity
  • Automatic test report printing



 Multifunctional and Precise Sample Probe

  • Highly-polished probe
  • Automatic inside and outside probe washing, reducing cross contamination
  • Highly sensitive liquid level detection sensor
  • Actively monitoring reagent volume
  • Protection of probe collision
  • Auto adjustment of sampling depth of sample probe



 Sample and Reagent Unit

  • 45 sample positions
  • 90 reagent positions
  • Built-in refrigeration system, continual 24-hour on-board cooling
  • Built-in barcode reader for reagents and samples (optional item)



 Reaction Unit

  • 120 cuvettes, can be replaced separately
  • The cuvettes are made of new-type non-crystalline optical plastic with better light transmittance
  • Minimum reaction volume: 150 μL
  • Stable and precise temperature control (37.0 ± 0.2°C)
  • 5-step cuvette Wash Station, thorough cleaning



 Stirring Unit

  • Independent stirring paddle
  • lmported Teflon coating technology
  • Effectively preventing cross contamination



 Advanced Operation System

  • lntuitive user-friendly interface, easy to learn and use
  • Auto sample dilution
  • Auto stopping and warning when reagents or samples run out
  • Calibration with linear or non-linear curves. Multi-point calibration
  • Automatically detecting cuvettes status and screening flawed cuvettes



Technical Parameters



Test Principles Turbidimetry, colorimetry
Test Methods End-point method, Rate method, two-point method
Test Speed Constant speed of 300 T/h
Sample Types Blood, urine, hydrothorax, cerebrospinal fluid
Reaction Temperature 37.0 ± 0.2°C (constant temperature)
Dimensions

Floor-standing: 1060 mm × 660 mm × 1230 mm

Benchtop: 1060 mm × 660 mm × 540 mm

Weight

Floor-standing: 140 kg

Benchtop: 85 kg





Floor-standing Benchtop



Test Item





Liver Function

TBA, AFU, ALT, AST, ALP, AMM, GGT, TP, GPDA, GLDH, ALB, TB, DB, PA, CHE, ADA, 5-NT, LAP, MAO, CG, GR

Renal Function

CRE-E, Urea, UA, β2-MG, CYS-C, MALB, NAG, RBP, CSF

Specific Protein and Rheumatism

ASO, RF, CRP,  Fer, CCP, Hs-CRP, TRF, RBP, C3, C4, IgA, IgM, IgG

Glycometabolism

GLU-HK, GLU-OX, FMN, D3-H, HbA1c, GA, LAC, NEFA

Blood Lipids and Cardiovascular

TG, TCH, HDL-C, LDL-C, ApoA1, ApoB, ApoE, Lp(a), HCY, NEFA, ACE, Myo, Lp-PLA2

Pancreatitis

LPS, AMY

Venous Thromboembolism and Coagulation

D-Dimer

Trace Elements and Electrolytes

Ca, Mg, P, CO2, Fe, Na, Cl, K, UIBC

Myocardial Enzyme

CK, CK-MB, CK-MB mass, LDH, HBDH, LDH1

Tumor

SA, AFU, Fer, TRF

Gastric Function

PG , PG
