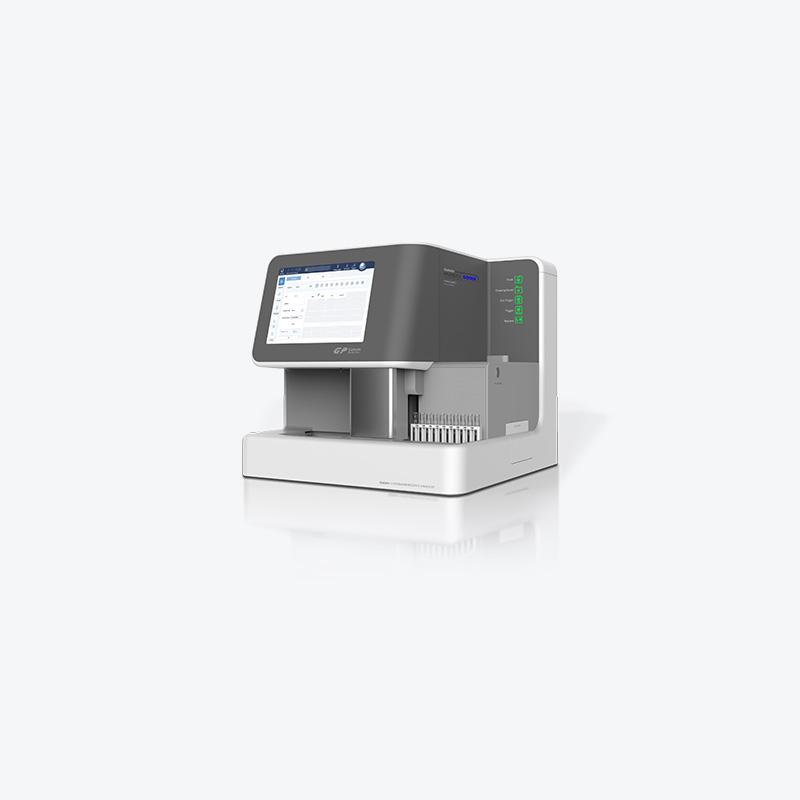

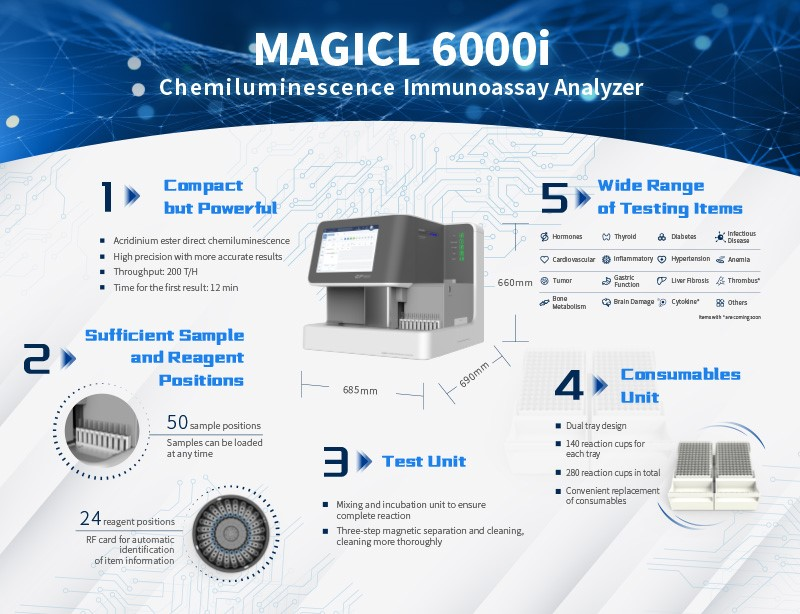

MAGICL 6000i, an innovative chemiluminescence immunoassay analyzer, featuring high productivity and compactness, with the highly sensitive CLIA methodology, enables accuracy, convenience and provides the fastest testing speed of any device of its size.
Bench top design
Relatively lighter weight: 80 kg
Throughput: up to 200 T/H
Fastest time for the first result: 12 min
2 independent consumable trays, support replacement without pause
140 reaction cups per tray24 reagent positions, support online loading
PE film puncture technology, preventing reagents from evaporation
Equipped with RFID, automatic identification of reagent information
Test Principle: Acridinium ester direct chemiluminescence
Throughput: Up to 200 T/H
Fastest Time for the First Result: 12 min
Reagent Positions: 24
Sample Positions: 50
Sample Type: Serum, plasma, urine, fingertip blood
Application Scenarios: Laboratory, Clinics, Emergency, ICU, Wards
Sampling Method: Steel needle
STAT: Support STAT mode
Sensing Functions: Liquid level detection, residual monitoring of reagent and sample, anti-collision
Reaction Cups: 2 individuals consumble trays with 140 reaction cups each
Reaction Temperature: 37℃±0.5℃
Magnetic Seperation & Washing: 3-step magnetic separation and 3-step washing
Dimensions: 685 mm(L)*690 mm(W)*660 mm(H)
Weight: 80 kg
