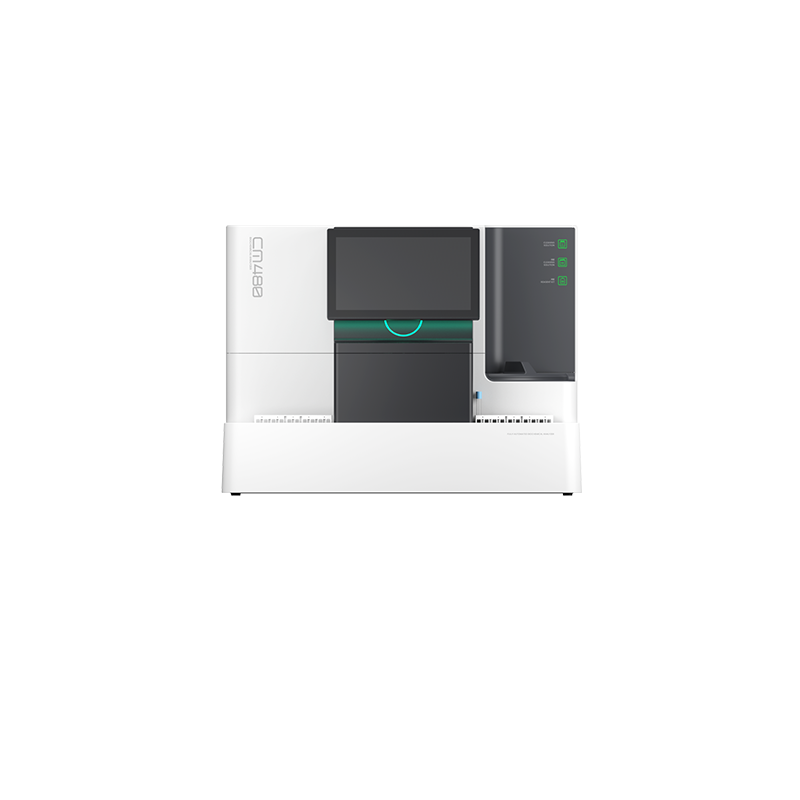

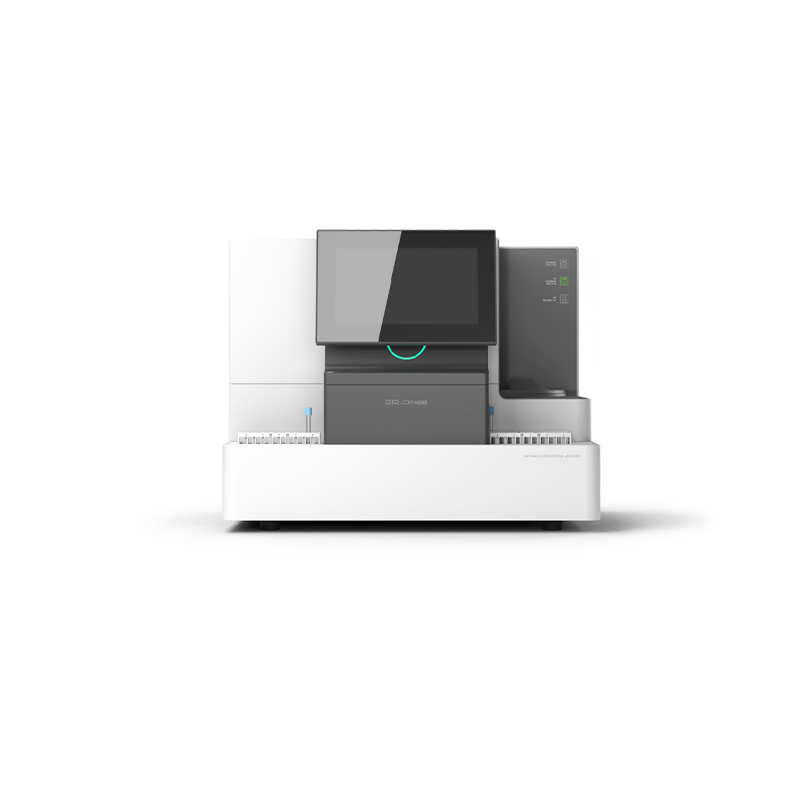

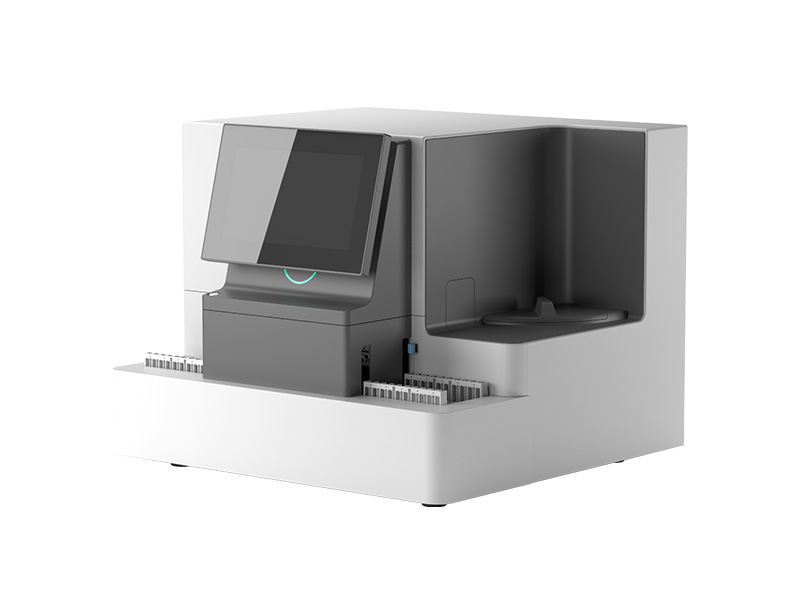

CM-480 is a compact benchtop clinical chemistry analyzer offering a throughput of 400 T/H and 600 T/H with an optional ISE module. With high-efficiency sample processing, an air bath heating system and precise sampling system, it delivers stable results and an enhanced user experience.
Optional ISE module: 600 T/H
105 cuvettes: quartz glass or plastic
Direct testing with whole blood samples; automatic on-board hemolysis and analysis
No manual pre-treatment required, ensuring higher accuracy
Simplified operation and improved testing efficiency
IFCC and NGSP standardization
Constant-temperature air bath with rapid heating reduces instrument warm-up time and requires no maintenance
The temperature control system utilizes dry heating to maintain the reaction solution in the cuvette at 37 ℃
Integrated with the MAGICL 6000i to form the Metis 600, the smallest clinical chemistry and immunochemistry modular system on the market—maximizing space savings while also shortening turnaround time
Cross-contamination rate < 0.01%
Water consumption: 15 L/H and 2-step washing solution + 4-step purified water washing
Intelligent 3D full-needle washing technology and ultrasonic cleaning system
Automatic wash solution dilution
Minimum reaction volume: 100 μL
Highly-precise injector, internally and externally polished sampling probes, liquid level detection and bubble detection
LED light source with high stability, long lifespan optical system with diffraction grating and 16 wavelengths
Test Principles: Latex immunoturbidimetry, immunoturbidimetry, colorimetry
Test Methods: Rate method, end point method, fixed-time method
Dimensions: 960 mm (L) * 770 mm (W) * 655 mm (H)
Sample Positions: 50 positions
Reagent Positions: 80 positions
Sample Types: Serum, plasma, whole blood, urine, and cerebrospinal liquid samples
Application Scenarios: Hospital Labs, Diagnostic Centers, Academic Research Institutes
Water Consumption: No more than 15 L purified water per hour
Minimum Reaction Volume: 100μL
