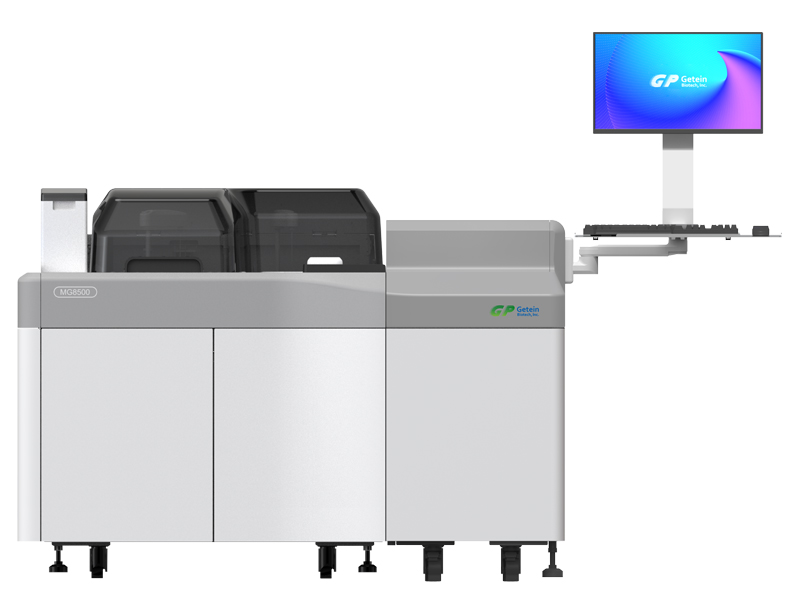

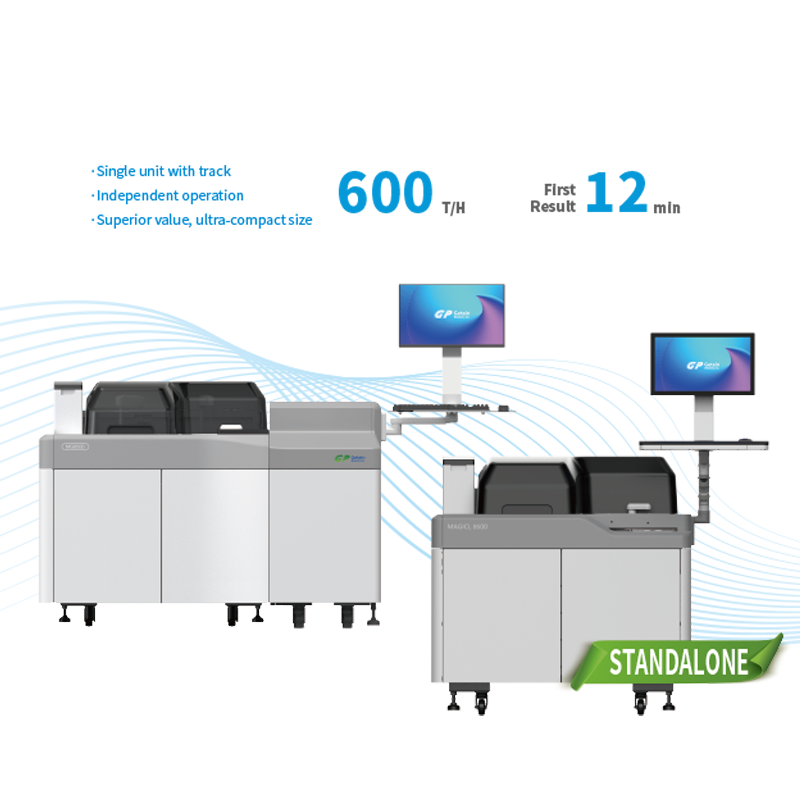

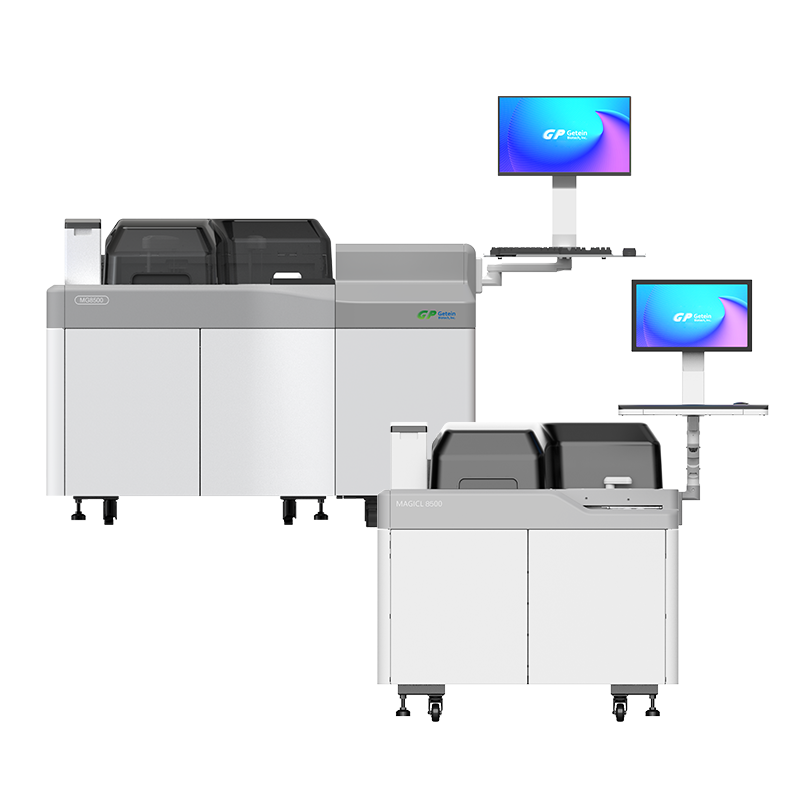

For labs with high test demand, MAGICL 8500 stands out as the perfect choice, thanks to its 600-tests-per-hour high throughput. It further delivers superior value and an ultra-compact footprint. What’s more, its flexible, scalable design enables simple integration of multiple pre-analytical, clinical chemistry, and immunochemistry units, meeting the requirements of larger laboratories.
Compatible with different types of sample tubes
Automatic recognition of sample height and tube cap
3 sample tracks: emergency loading, regular loading and sample returning
Independent emergency track, emergency samples in priority
Tilt-pour test cups loading, with a maximum capacity of 2000
Four-step washing for more thorough cleaning
30 reagent positions for simultaneous testing of up to 30 different items
RFlD recognition of reagents, dynamic refreshing of reagents status
Compact footprint
Flexible expansion of multiple pre-analytical and clinical chemistry/immunochemistry modules
Flexible combination of 4 analytical modules at most
Test Principle: Acridinium ester direct chemiluminescence
Analysis Methods: Sandwich method, competition method
Throughput: Up to 600 T/H
Fastest Time of First Result: 12 min
Reaction Cup: Using mainstream circular reaction cup, up to 2000 pieces can be stored at a time
Reagent Tray: 30 reagent positions with 2-8 ℃ internal air circulation refrigeration
Dimensions: : 1100 mm (L) x 873 mm (W) x 1232 mm (H)
Sample Volume: 5 μL~150 μL (1 μL increment)
Sample Probe: Probe clog detection, horizontal collision prevention, vertical collision prevention, liquid level detection
Reagent Volume: 10 μL~ 150 μL (1 μL increment)
Reaction Tray: 183 incubation positions, non-contact vortex mixing
Carryover Contamination Rate: ＜ 0.1 PPM
Test Cup: Maximum 2000 units
Heating Method: Direct solid heating
Magnetic Separation Washing Station: 4-step magnetic separation, 4-step washing
