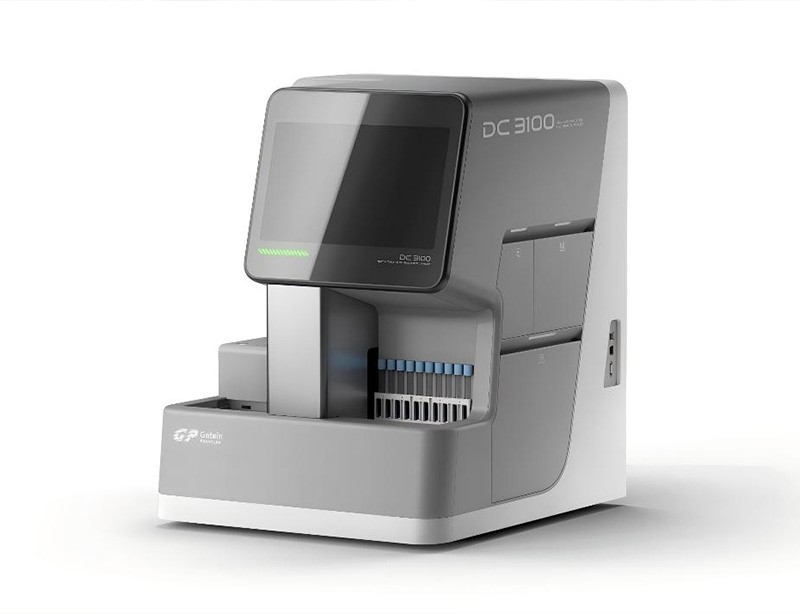

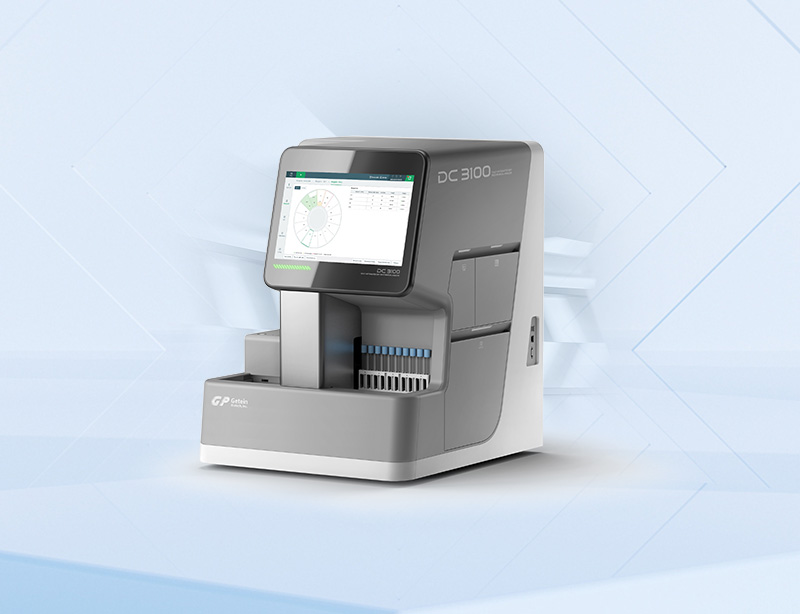

DC 3100 is a clinical chemistry analyzer with a compact benchtop design. Utilizing multilayered dry chemistry technology with zero water consumption, it provides a constant throughput of 400 T/H. Featuring a built-in ISE module, it can be connected with MAGICL 6000 to form the Metis 600 system.
Constant throughput with built-in ISE 400 T/H
Automatic decapping and recapping
Automated sample system with probe clogging detection, liquid level monitoring
Dry chemistry system reduces HIL interference for more accurate results, shortens sample turnaround time and uses no water
Small footprint only takes up 0.42 ㎡ and offers flexible installation with plug-and-play operation
Connectable with MAGlCL 6000 to form the Metis 600⸺One tube of whole blood sample to test, also connectable with Getein 1200 which enables liquid-free testing
A durable LED light source ensures 60000 hours long lifespan, stable illumination, and low maintenance cost
Test Principles：Colorimetry; Direct ISE method
Dimensions: 628 mm (L) * 671 mm (W) * 810 mm (H)
Sample Positions: 50
Sample Type：Whole blood/Serum/Plasma/Urine
Minimum Sample Volume: 10 μL per test
Reagent Positions: 40
Light Source: LED
