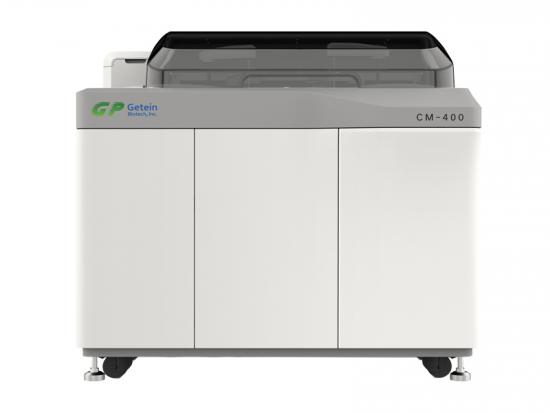

CM-400
Clinical Chemistry Analyzer
Intended Use
CM-400 is a fully automated analyzer intended to quantitatively analyse chemical components in human serum, plasma, whole blood, urine, and cerebrospinal liquid samples, offering constant throughput of 400 T/h. The CM-400 has an efficient sample loading capacity and can test up to 78 tests simultaneously. The instrument's intelligent online loading system allows the user to load reagents during testing. The device also features a dry heating and thermostat system for fast, maintenance-free heating. The 8-step warm water cleaning technology with full probe stereo cleaning makes the cross-contamination rate less than 0.05%.
Features
Specifications
|
Test Principle |
Latex Immunoturbidimetry, Immunoturbidimetry, Colorimetry |
Analysis Method |
Rate, End-point, Fixed-time |
|
Test Items |
Up to 78 items at the same time |
Analysis Rate |
Constant Speed 400 T/H |
| Sample Tray | 90 Sample Positions (including sample, calibrator and controls) |
Sample Volume |
1.50-50.0 µL (0.1 µL increment) |
| Reagent Volume |
R1: 20.0-300.0 µL R2/R3/R4: 0 or 20.0-300.0 µL (1 µL increment) |
Reagent |
Up to 4 reagents per test item |
| Reaction Volume | 100.0-360.0 µL |
Reagent Tray |
Reagent Positions: outer: 40 sample positions |
| Reaction Temperature | Constant temperature control (37.0±0.2)°C |
Cuvette |
Quartz glass: 5*5mm; 90 cuvettes |
| Weight | 300 kg |
Dimension |
1160 mm (L) x 790 mm (W) x 1140 mm (H) |
| Water Consumption | No more than 20 L purified water per hour | ||
|
Liver Function |
TBA, AFU, ALT, AST, ALP, AMM, GGT, TP, GPDA, GLDH, ALB, TB, DB, PA, CHE, ADA, 5’-NT, LAP, MAO, CG, GR |
|
Renal Function |
CRE-E, Urea, UA, β2-MG, CYS-C, MALB, NAG, RBP, CSF |
|
Specific Protein and Rheumatism |
ASO, RF, CRP, fCRP, Fer, CCP, Hs-CRP, TRF, RBP, C3, C4, IgA, IgM, IgG |
|
Glycometabolism |
GLU-HK, GLU-OX, FMN, D3-H, HbA1c, GA, LAC, NEFA |
|
Blood Lipids and Cardiovascular |
TG, TCH, HDL-C, LDL-C, ApoA1, ApoB, ApoE, Lp(a), HCY, NEFA, ACE, Myo, Lp-PLA2 |
|
Pancreatitis |
LPS, AMY |
|
Venous Thromboembolism and Coagulation |
D-Dimer |
|
Trace Elements and Electrolytes |
Ca, Mg, P, CO2, Fe, Na, Cl, K, UIBC |
|
Myocardial Enzyme |
CK, CK-MB, CK-MB mass, LDH, HBDH, LDH1 |
|
Tumor |
SA, AFU, Fer, TRF |
|
Gastric Function |
PG Ⅰ, PG Ⅱ |
