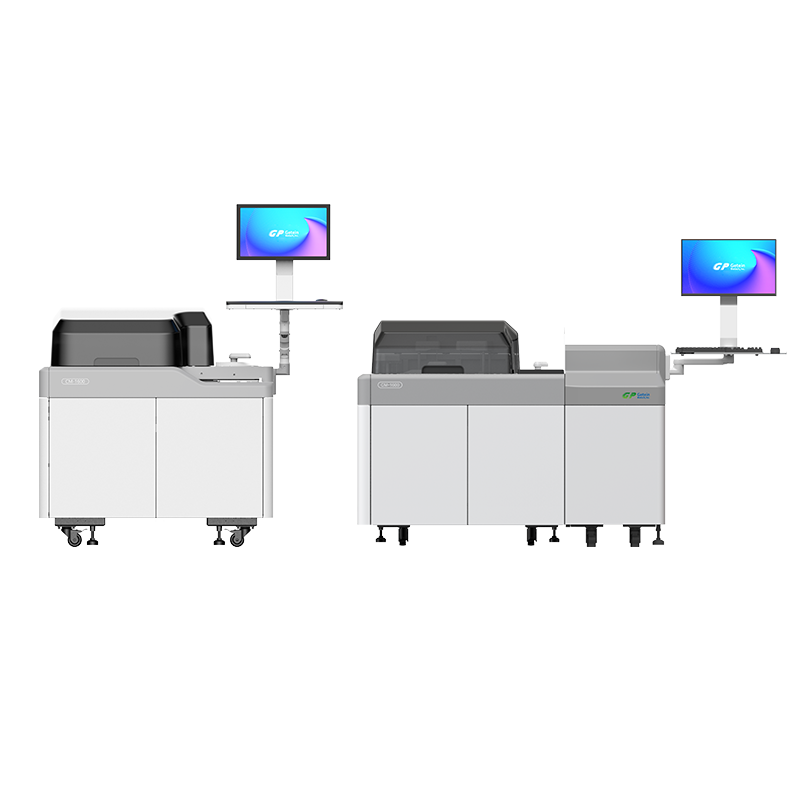

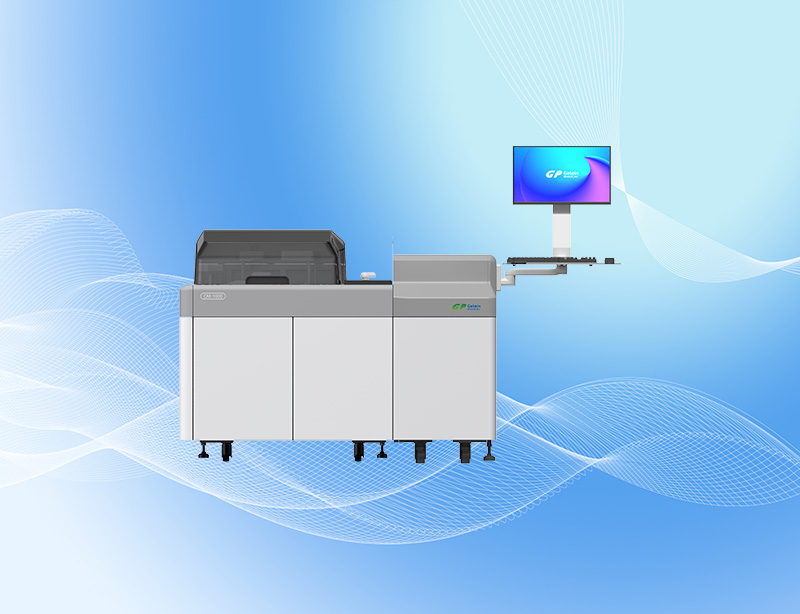

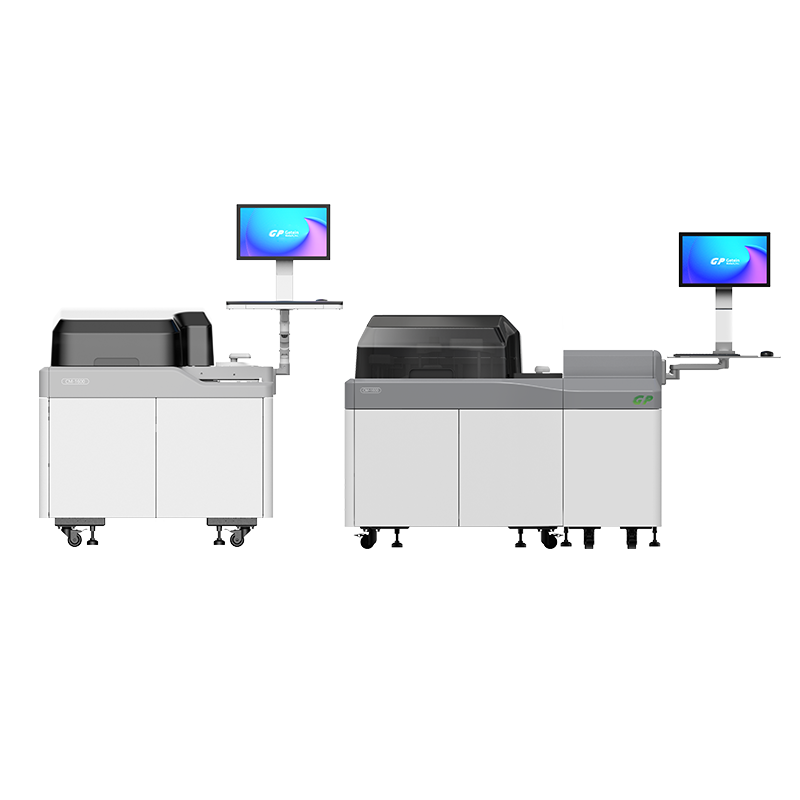

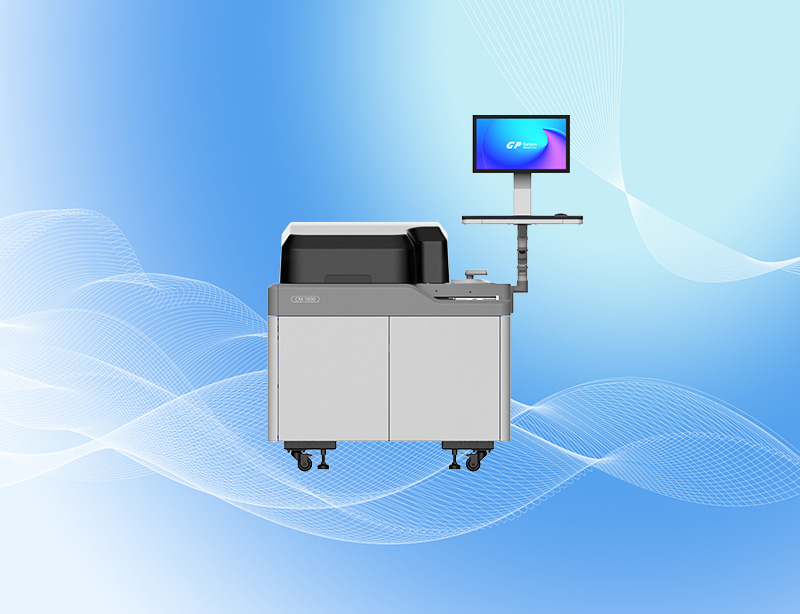

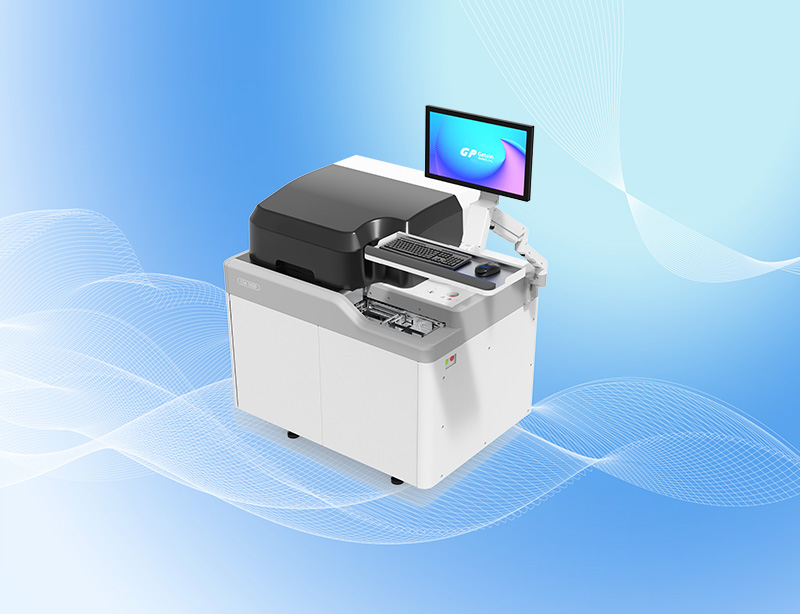

The CM-1600 is a high-performance, fully automated clinical chemistry analyzer that delivers up to 1600 tests per hour. It supports STAT samples, enables automatic retesting, and can be integrated with the MAGICL 8500 as the modular Metis 7000.
Same speed, smaller size with 50 sample positions
Single analytical module only occupied 1 m²
Throughput can reach up to 1600 T/H, optional ISE module with 600 T/H
107 reagent positions, simultaneous testing of up to (63 + 3 ISE) different items
277 quartz glass cuvettes, replaceable individually
Direct testing supported, no pretreatment needed
Fully automated in-machine hemolysis and detection
Dry heating to maintain the reaction solution in the cuvette at 37.0 ℃
LED light source with a lifespan of 20,000 hours
8-step cleaning with acid, alkaline, and warm water
Equipped with probe clogging detection, horizontal anti-collision, vertical anti-collision
Liquid level monitoring, and ultrasonic cleaning function
Whole probe stereo cleaning technology with cross contamination rate 0.1 PPM
Throughput can reach up to 1600 T/H, optional ISE module with 600 T/H
190 sample positions with AI visual recognition for barcode scanning, sample type and tube identification, sample level and serum quality detection
107 reagent positions, simultaneous testing of up to (63 + 3 ISE) different items
277 quartz glass cuvettes, replaceable individually
Direct testing supported, no pretreatment needed
Fully automated in-machine hemolysis and detection
Dry heating to maintain the reaction solution in the cuvette at 37.0 ℃
LED light source with a lifespan of 20,000 hours
8-step cleaning with acid, alkaline, and warm water
Equipped with probe clogging detection, horizontal anti-collision, vertical anti-collision
Liquid level monitoring, and ultrasonic cleaning function
Whole probe stereo cleaning technology with cross contamination rate 0.1 PPM
Test Principles: Latex immunoturbidimetry, immunoturbidimetry, colorimetry
Test Methods: Rate method, end point method, fixed-time method
Sample Positions: 50 /190 positions
Reagent Positions: 107 positions
Sample Types: Serum, plasma, whole blood, urine, and cerebrospinal liquid samples
Water Consumption: No more than 70 L purified water per hour
Minimum Reaction volume: 70 μL
Minimum Sampling Volume: 1.0 μL
