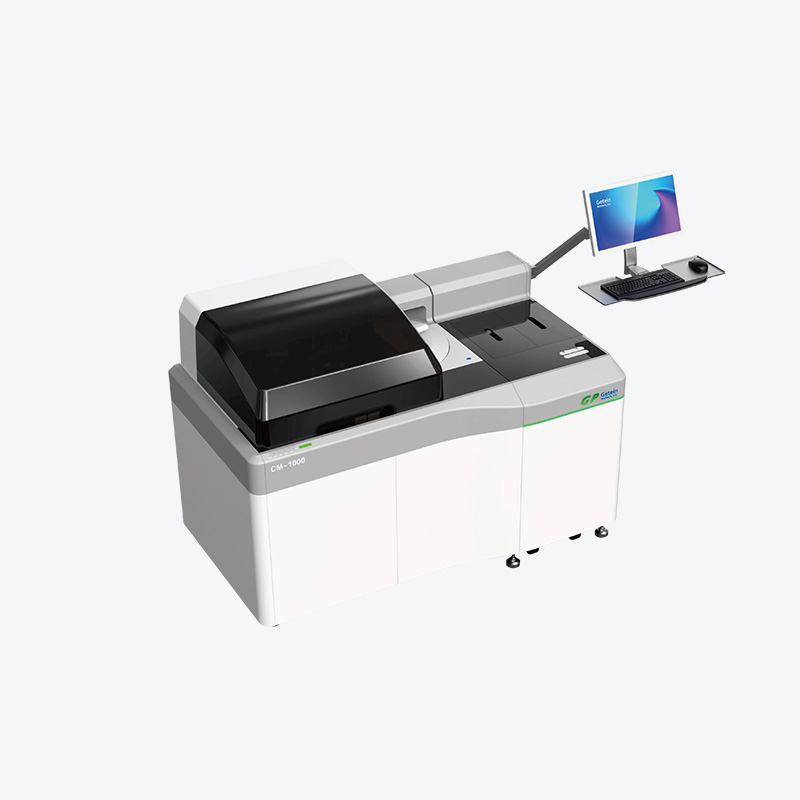

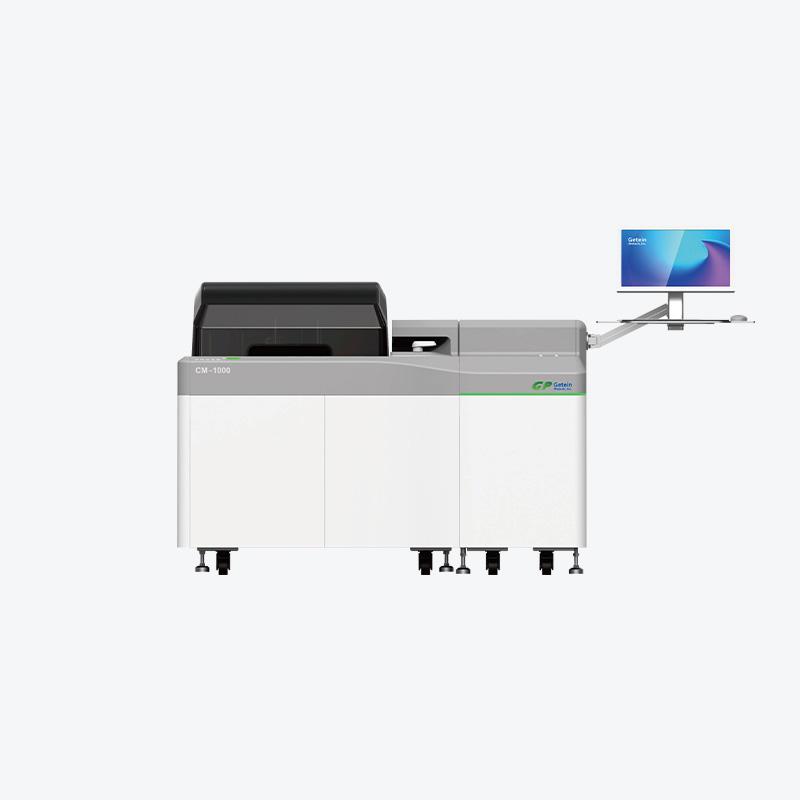

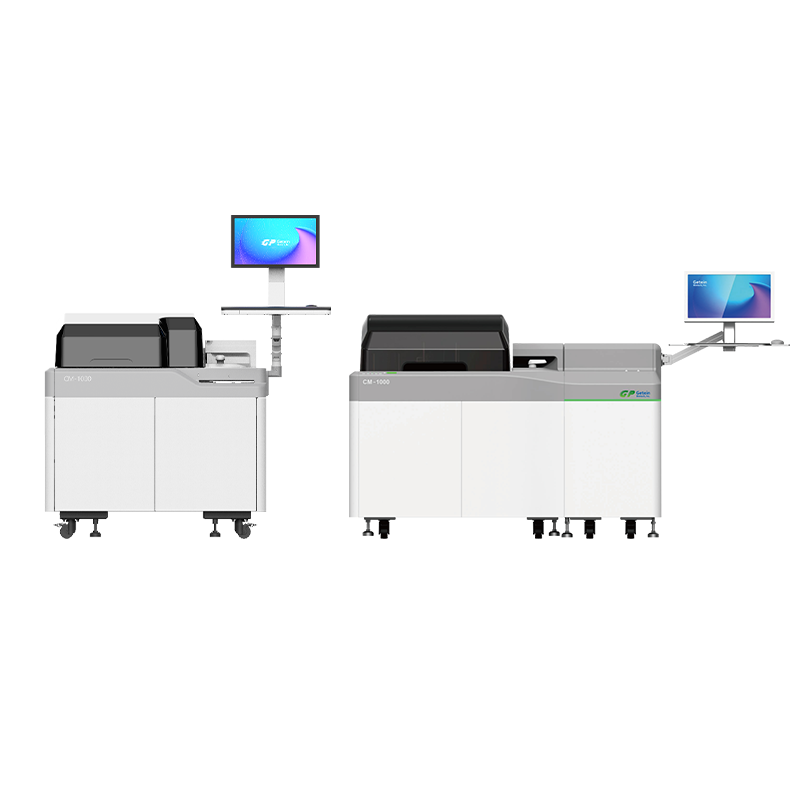

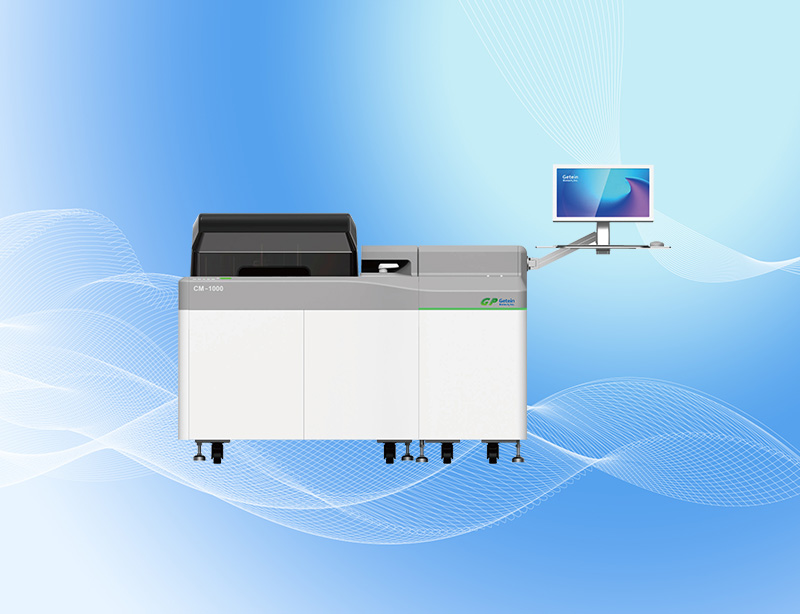

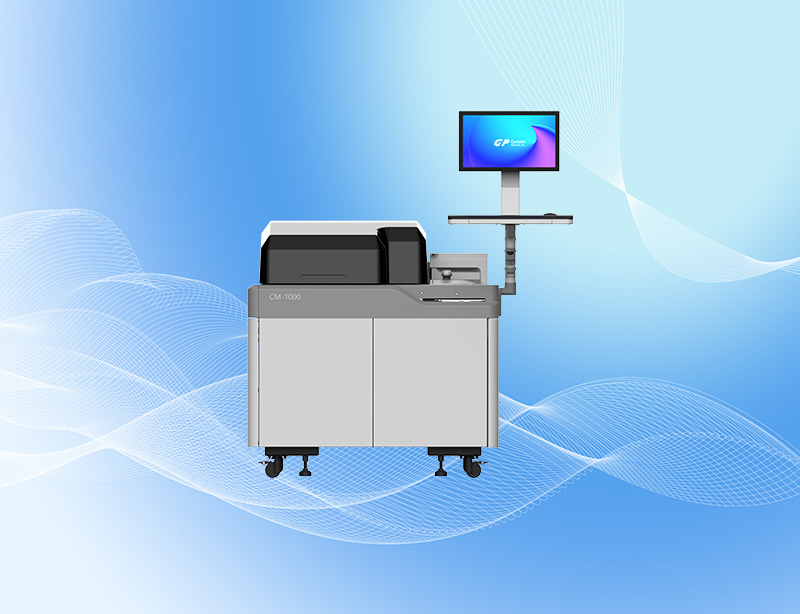

The CM-1000 is a high-performance clinical chemistry analyzer delivering up to 1000 tests per hour. It supports STAT samples and automatic retesting, and can be integrated with the MAGICL 6200 as the modular Metis 6000 system.
Smaller footprint without compromising speed
50 sample positions and support STAT samples
Constant throughput: 1000 T/H, optional ISE module with 400 T/H
Internally and externally polished sampling probes, high precision
Liquid volume tracking and level detection
103 reagent positions, simultaneous testing of up to (61 + 4 ISE) different items
270 quartz glass cuvettes, replaceable individually
3 sample tracks: emergency loading, regular loading and sample returning
Independent emergency track, emergency samples in priority
Double-row cleaning design
8-step washing, more thorough cleaning
Constant throughput: 1000 T/H, optional ISE module with 400 T/H
190 sample positions with AI visual recognition for barcode scanning, sample type and tube identification, sample level and serum quality detection
Internally and externally polished sampling probes, high-precision
Liquid volume tracking and level detection
103 reagent positions, simultaneous testing of up to (61 + 4 ISE) different items
270 quartz glass cuvettes, replaceable individually
3 sample tracks: emergency loading, regular loading and sample returning
Independent emergency track, emergency samples in priority
Double-row cleaning design
8-step washing, more thorough cleaning
Test Principles: Latex immunoturbidimetry, immunoturbidimetry, colorimetry
Test Methods: Rate method, end point method, fixed-time method
Dimensions: 1100 mm (L) * 930 mm (W) * 1200 mm (H)
Gross Weight: 400 kg
Sample Positions: 190 positions
Reagent Positions: 103 positions
Sample Types: Serum, plasma, whole blood, urine, and cerebrospinal liquid samples
Application Scenarios: Hospital Labs, Diagnostic Centers, Academic Research Institutes
Water Consumption: No more than 40 L purified water per hour
Minimum Reaction Volume: 100μL
Minimum Sampling Volume: 1.5μL
